Micro BNC connectors are designed for the HD & UHD Broadcast, Telecom, and HD CCTV markets where applications require high performance in a high-density package. Suntsu’s HD (High Density) BNC connectors deliver 75Ω, enhancing both electrical and mechanical performance.
These connectors not only have 4x the density, but the form factor is 50% smaller than standard BNC connectors [2]. HD-BNC (also called Micro BNC) achieves this by shrinking the footprint while preserving a true 75Ω interface and standard BNC-level signal performance. Their nickel-plated brass body is designed to terminate to a variety of PCBs and brings reliable performance up to 12GHz. Our HD-BNC connectors are right angle PCB mount types, and can be used in full HD 1080P, HD-SDI, Ultra HD 4K (12G) applications. The 12G-SDI interface is defined by SMPTE ST 2082 as a nominal 12 Gbps serial link for 4K/UHD video, with a 75Ω coaxial physical layer [1].

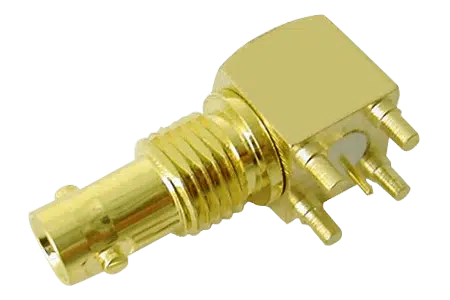

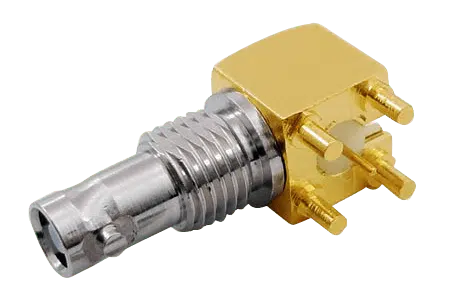

Suntsu’s HD-BNC Connectors
Key features include
- High Density
- True 75Ω
- Right Angle PCB Mount-Type.
- Frequency Range: Up to 12GHz
- Dielectric Withstanding Voltage: 1000Vrms min.
- Gold Plating Housing
- Brass Nickel Plated Contact
Applications include
- Digital A/V or Routing systems
- Mobile Broadcast
- Studio Integration
- Broadcast Cameras
If you have any questions about this product or anything else we offer, reach out to speak with a representative today! We’re here to help you create what’s next!
