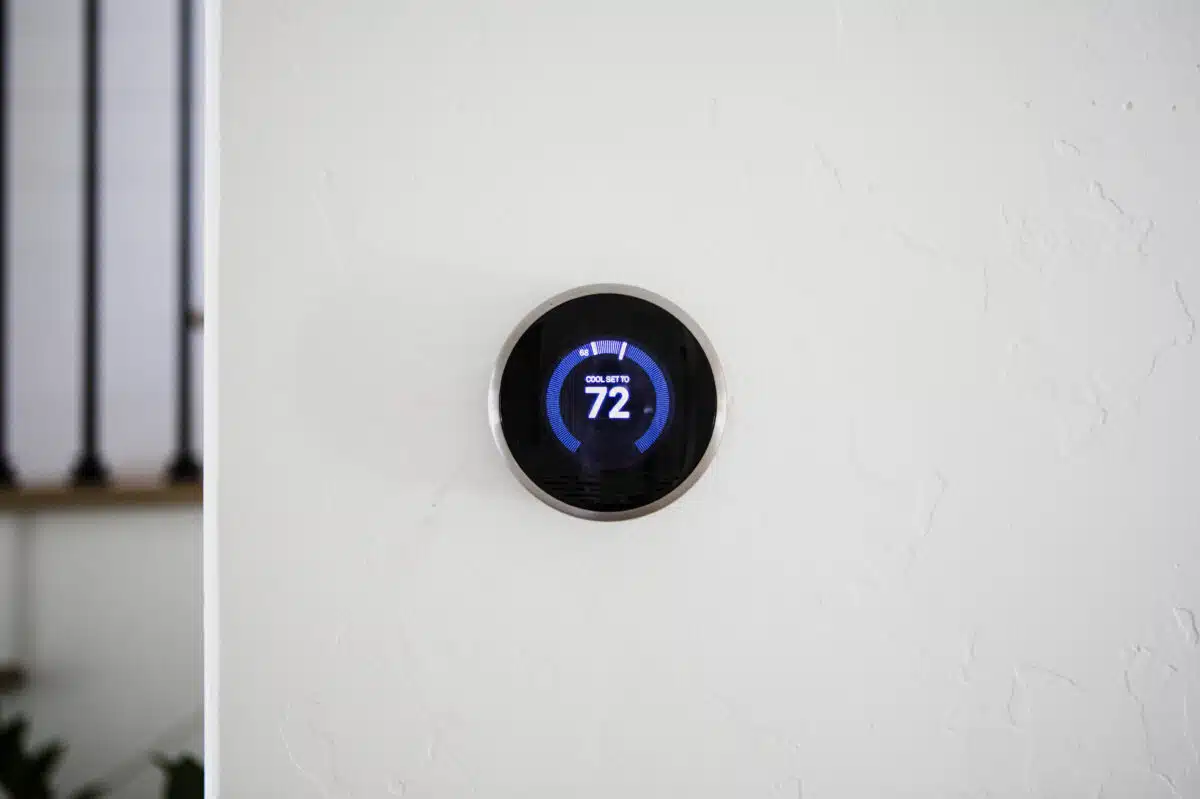

In today’s tech-driven world, microcontroller units (MCUs) are the hidden brains behind countless devices, from smart thermostats to car engine systems and children’s toys. Understanding how MCUs operate and how to select the right one is crucial for engineers, purchasing managers, and manufacturers to ensure project success. At Suntsu Electronics, we empower professionals by providing both the necessary components and the knowledge required to navigate the complexities of component selection and supply chain management, enabling informed decisions for specific applications.
What is a Microcontroller?
How do Microcontrollers work?
Microcontrollers operate by executing a program stored in their memory. This process follows a fundamental cycle:
This Fetch-Decode-Execute cycle repeats continuously, often millions or billions of times per second, allowing the MCU to react to inputs and control outputs in real-time.
Why are Microcontrollers So Essential in Modern Electronics?
Cost-Effectiveness
-
- MCUs provide significant computational power at a low cost per unit, especially when produced in large quantities, making them an economical choice for dedicated control tasks.
Reliability
-
- MCUs are designed for specific tasks and typically run dedicated firmware, resulting in stable and reliable operation compared to general-purpose computing systems.
Low Power Consumption
-
- Many MCUs are designed to draw minimal power, making them ideal for battery-operated devices where energy efficiency is critical. They often include various low-power sleep modes.
Real-Time Control
-
- MCUs excel at responding quickly and predictably to external events, which is essential for applications like motor control, safety systems, and industrial automation.
Compact Size
-
- By integrating multiple functions onto a single chip, MCUs save considerable board space, allowing for smaller and more portable product designs.
Integration
-
- With built-in peripherals, MCUs simplify system design by reducing the need for external components, which lowers costs and enhances reliability.
Choosing the Right Microcontroller
With thousands of MCU variants from various manufacturers, choosing the right one for your project can be daunting. It’s essential to take a systematic approach, focusing on the specific needs of your application. Consider the following key factors in your evaluation:
Performance Needs (CPU Core & Clock Speed):
- Architecture: 8-bit microcontrollers (MCUs), like classic PIC or AVR, are simple, low-cost options suitable for basic control tasks. 16-bit MCUs serve as a middle ground, while 32-bit MCUs, primarily from the ARM Cortex-M series, deliver higher performance for complex algorithms, connectivity, and advanced user interfaces.
- Clock Speed (MHz/GHz): Determine the necessary CPU speed for your application. Higher clock speeds can result in faster processing but typically consume more power. It’s important to match the clock speed to the computational demands of your application without over-specifying.
Package Type & Size:
- Physical dimensions matter. Does the MCU need to fit into a constrained space?
- Consider manufacturability: Surface Mount Devices (SMD) like QFP, QFN, or BGA are common but require specialized assembly. Dual In-line Packages (DIP) are easier for prototyping but generally take up more space.
Peripheral Integration:
- Identify the specific peripherals your application requires. How many GPIO pins do you need? Will you require ADC/DAC functionality? What communication interfaces (UART, SPI, I2C, USB, Ethernet, CAN) are necessary? How many timers or PWM channels are needed? Choosing an MCU with the required peripherals integrated simplifies design and reduces costs.
Power Consumption:
- This is critically important for battery-powered or energy-sensitive applications. Review datasheets for current draw during active mode, various sleep modes (idle, sleep, deep sleep), and peripheral power consumption. Look for MCUs specifically labeled as “low-power.
Longevity & End-of-Life (EOL):
- How long does the manufacturer guarantee the production of this MCU? For products with long life cycles, it is crucial to choose an MCU with long-term availability. Understanding EOL timelines and having strategies for managing obsolescence —potentially with support from partners like Suntsu—are essential.
Memory Requirements:
- Flash (Program Memory): Estimate the size of your code, including any libraries and potential future updates. Running out of program space is a common issue, so choose an MCU with enough Flash memory to allow for some extra capacity for enhancements.
- RAM (Data Memory): Evaluate your variables, data buffers—especially for communication—and stack requirements. Insufficient RAM can result in crashes or unpredictable behavior, so ensure you have enough to maintain stability and reliability within your application.
Operating Voltage & Environmental Conditions:
- Ensure the MCU’s operating voltage range is compatible with your system’s power supply.
- Consider the operating temperature range; industrial or automotive applications require broader temperature ranges (-40°C to +85°C or +125°C) compared to standard consumer-grade applications (0°C to +70°C).
Development Ecosystem & Tools:
- Assess how easy it is to develop for the chosen MCU. Check the availability and quality of Integrated Development Environments (IDEs), compilers, debuggers (like JTAG or SWD), software libraries (HALs, middleware), and example code provided by the manufacturer.
- Strong community support, including forums and online resources, can be very beneficial.
Availability & Lead Time:
- Ensure you can reliably source the chosen MCU. In today’s unpredictable market, supply chain resilience is essential. Check current stock levels and manufacturer lead times. Partnering with a distributor like Suntsu, known for strong sourcing capabilities, can help mitigate risks associated with component shortages.
Cost:
- Consider the cost per unit, especially for volume production. Factor in the expenses for supporting components and development tools. Aim to balance features with your budget.
Making the Right Choice with Suntsu
Microcontrollers are essential to embedded systems, driving innovation across various industries. At Suntsu Electronics, we recognize that selecting the right MCU involves more than just matching specifications; it requires an understanding of market availability, managing obsolescence, and ensuring timely delivery. With our extensive portfolio from leading manufacturers and exceptional sourcing capabilities, we can help you find even hard-to-find components. Our engineering team can further assist in identifying alternatives and navigating complex selection criteria, making us a reliable partner for engineers, purchasing managers, and contract manufacturers in overcoming supply chain challenges and bringing innovative products to life.
Need help selecting or sourcing microcontrollers for your next project? Contact the Suntsu Electronics team today – we’re ready to put our expertise and global network to work for you.
Microcontroller FAQs
A microprocessor is primarily just the Central Processing Unit (CPU) and requires external chips for memory (RAM, ROM) and input/output (I/O) peripherals. A microcontroller integrates the CPU, memory, and various peripherals all onto a single chip, making it a self-contained “computer on a chip” designed for specific embedded tasks.
These terms typically refer to the size of the data bus and the amount of data the CPU can process in a single operation. An 8-bit MCU processes data in 8-bit chunks while a 32-bit MCU will process data in 32-bit chunks. Higher bit counts generally offer more processing power, larger addressable memory space, and often more sophisticated peripherals, and are suitable for more complex tasks.
The most common languages are C and C++. Assembly language is also used, especially for performance-critical sections or very resource-constrained devices. Higher-level languages like MicroPython/CircuitPython are becoming increasingly popular for rapid prototyping and certain applications, especially on more powerful MCUs.
Firmware is the specific software program written by developers that is stored in the microcontroller’s non-volatile memory (like Flash). It contains the instructions that tell the MCU how to perform its dedicated tasks when powered on.
Flash memory is non-volatile, meaning it retains stored information (typically the program code/firmware) even when power is removed. RAM (Random Access Memory) is volatile, meaning it loses its contents when power is off; it’s used for temporary data storage (variables, stack) while the program is running.
EOL signifies that the manufacturer plans to discontinue the production of that specific microcontroller model. For products with long lifecycles, selecting components with long-term availability and having strategies (like partnering with distributors experienced in obsolescence management) to handle potential EOL situations is vital.
