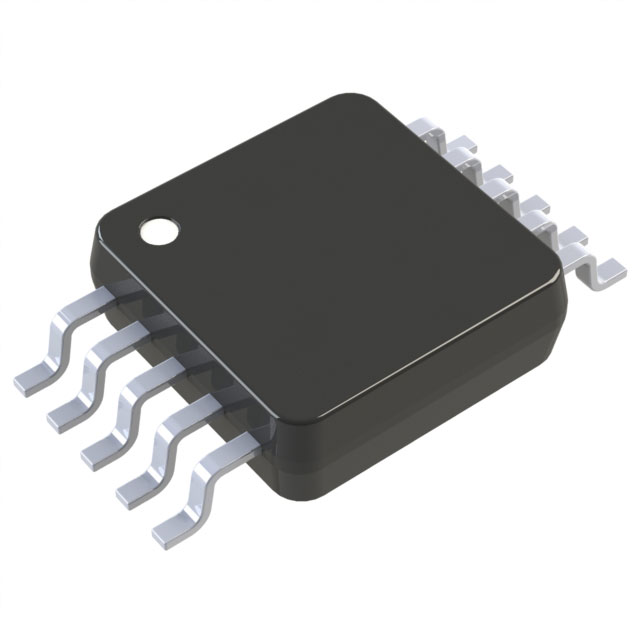

ADG5423BRMZ-RL7
IC SWITCH SPST-NOX2 14OHM 10MSOP
| Part Description | 2 Circuit IC Switch 1:1 14Ohm 10-MSOP |
|---|
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Leadtime | 10 Weeks |
| Datasheet | |
| Quantity | 268 Available |
Specifications
| Part Package | 10-TFSOP, 10-MSOP (0.118″”, 3.00mm Width) |
|---|---|
| Device Package | 10-MSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 14Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 9V ~ 40V |
| Voltage – Supply, Dual (V±): | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max): | 199ns, 184ns |
| -3db Bandwidth: | 250MHz |
| Charge Injection: | 120pC |
| Channel Capacitance (CS(off), CD(off)): | 11pF, 12pF |
| Current – Leakage (IS(off)) (Max): | 250pA |
| Crosstalk: | -85dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
