SUO32L Series – 3.2MM X 2.5MM Ceramic SMD Ultra Low Jitter 6 Pad LVDS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Ultra Low Phase Jitter
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Ceramic Package
• LVDS
• Ultra Low Phase Jitter
• Tape and Reel

Applications

• Fiber Channel
• Gigabit Ethernet
• PCI Express

Part Number Builder

Please choose your parameters to build a part number:

Part Numbering Guide

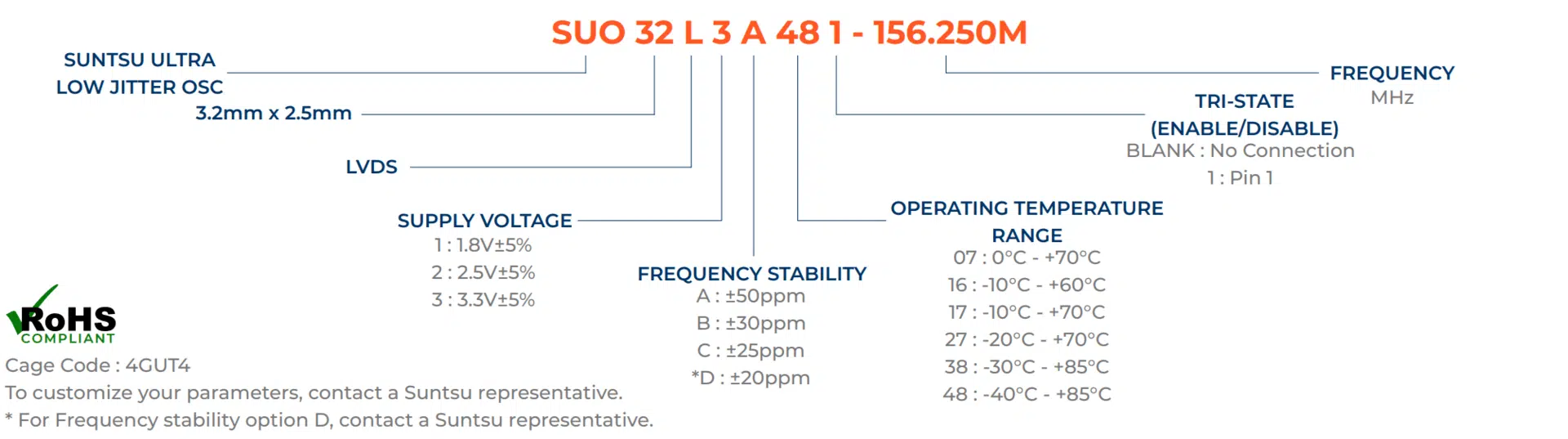

SUO32L-part-numbering-guide-updated

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz80170
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Current (IDD) - 3.3V OptionmA65
Output Load (LVDS)Ω100
Output Logic Levels High (VOH) V1.431.6
Output Logic Levels Low (VOL) V0.91.1
Differential Output Voltage (VOD)mV247330545
Differential Output Error (DVOD)mV50
Offset Voltage(VOS)V1.1251.2501.375
Offset Error (DVOS)mV50
Rise (TR) and Fall (TF) Timens0.40.8
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems5.0
Phase Jitter (12kHz ~ 20MHz)ps0.0670.1
