SXOFSC Series – 20.7MM X 13.1MM Metal Full If Size DIP CMOS Oscillator

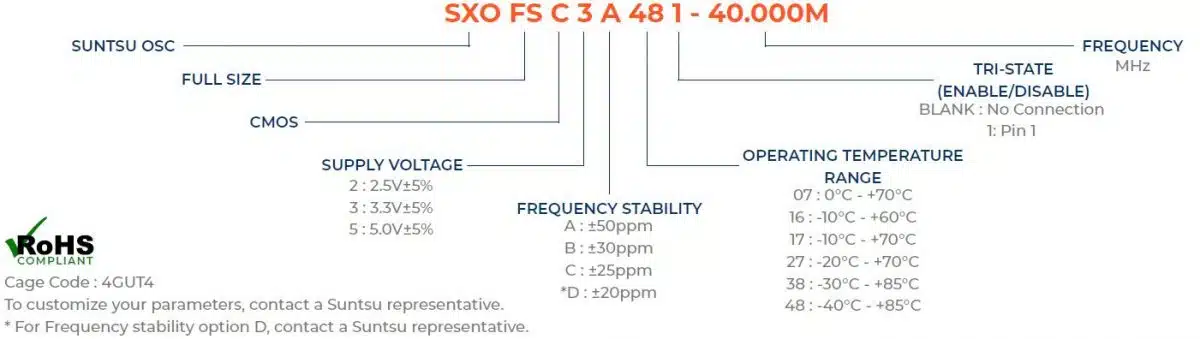

Part Numbering Guide
Electrical Parameters
Parameters | Units | Min | Typical | Max | Remarks |
---|---|---|---|---|---|
Frequency Range | MHz | 0.0327 | 155.52 | ||
Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
Storage Temperature | °C | -55 | +125 | ||
Supply Voltage (VDD) - 2.5V Option | V | 2.375 | 2.5 | 2.625 | |
Supply Voltage (VDD) - 3.3V Option | V | 3.125 | 3.3 | 3.465 | |
Supply Voltage (VDD) - 5.0V Option | V | 4.750 | 5.0 | 5.250 | |
Current (IDD) - 2.5V Option | mA | 20 | |||
Current (IDD) - 3.3V Option | mA | 30 | |||
Current (IDD) - 5.0V Option | mA | 40 | |||
Output Load (CMOS) | pF | 15 | |||
Output Load (TTL) | TTL | 10 | |||
Output Logic Levels High (VOH) - CMOS | V | 0.9*VDD | |||
Output Logic Levels High (VOH) - CMOS | V | 0.1*VDD | |||
Output Logic Levels Low (VOL) - TTL | V | 2.4 | |||
Output Logic Levels Low (VOL) - TTL | V | 0.4 | |||
Rise (TR) and Fall (TF) Time | ns | 5 | |||
Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
Tri-State Input Voltage - Enable | V | 0.7*VDD | No Connection | ||
Tri-State Input Voltage - Disable | V | 0.3*VDD | |||
Start-Up Time | ms | 10 | |||
Phase Jitter (12kHz ~ 20MHz) | ps | 1 |
Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
