SXOHSC Series – 13.2MM X 13.2MM Metal Half Size DIP CMOS Oscillator

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Standard Half-Size Package
• CMOS/TTL Compatible

Applications

• PC
• Monitor
• Vision Equipment
• Printer
• Fax

3D Product View

3D View

Features

• ±20ppm (Frequency Stability) Available
• Standard Half-Size Package
• CMOS/TTL Compatible

Applications

• PC
• Monitor
• Vision Equipment
• Printer
• Fax

Part Number Builder

Please choose your parameters to build a part number:

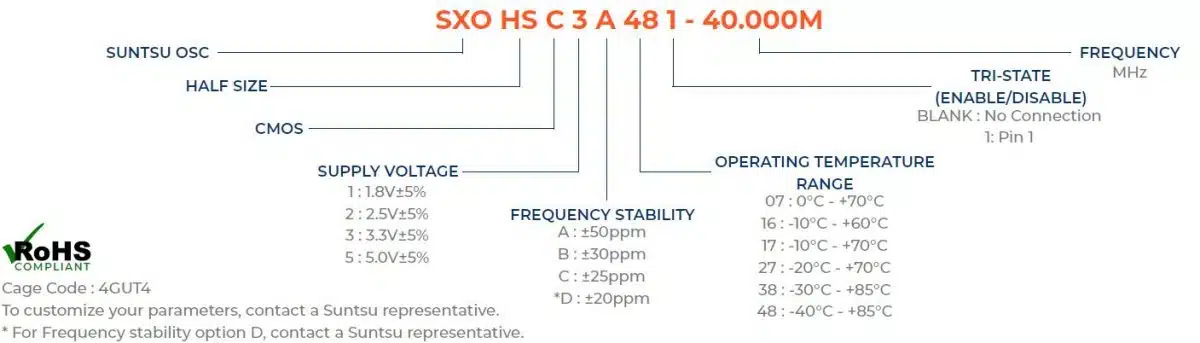

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz0.0327155.52
Frequency Stability (Includes Initial
Tolerance at 25°C, Frequency Stability
over Operating Temperature, Output Load
Change, Supply Voltage Change, and First
Year Aging at 25°C.)
ppm-20+20See part numbering guide for options.
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 1.8V OptionV1.6201.81.980
Supply Voltage (VDD) - 2.5V OptionV2.3752.52.625
Supply Voltage (VDD) - 3.3V OptionV3.1253.33.465
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250
Current (IDD) - 1.8V OptionmA10
Current (IDD) - 2.5V OptionmA20
Current (IDD) - 3.3V OptionmA30
Current (IDD) - 5.0V OptionmA40
Output Load (CMOS)pF15
Output Load (TTL)TTL10
Output Logic Levels High (VOH) - CMOSV0.9*VDD
Output Logic Levels High (VOH) - CMOSV0.1*VDD
Output Logic Levels Low (VOL) - TTLV2.4
Output Logic Levels Low (VOL) - TTLV0.4
Rise (TR) and Fall (TF) Timens5
Symmetry (Duty Cycle)%455055
Tri-State Input Voltage - EnableV0.7*VDDNo Connection
Tri-State Input Voltage - DisableV0.3*VDD
Start-Up Timems10
Phase Jitter (12kHz ~ 20MHz)ps1

Outline Drawing & Recommended Landed Pattern

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
