STCFSC Series – 18.3MM X 11.7MM Metal Full Size Dip CMOS (VC)TCXO

3D Product View

3D View

Features

• ±1.0ppm (Frequency Stability) Available
• CMOS
• (VC)TCXO

Applications

• Communication Equipment
• Base Station
• FAX

Part Number Builder

Please choose your parameters to build a part number:

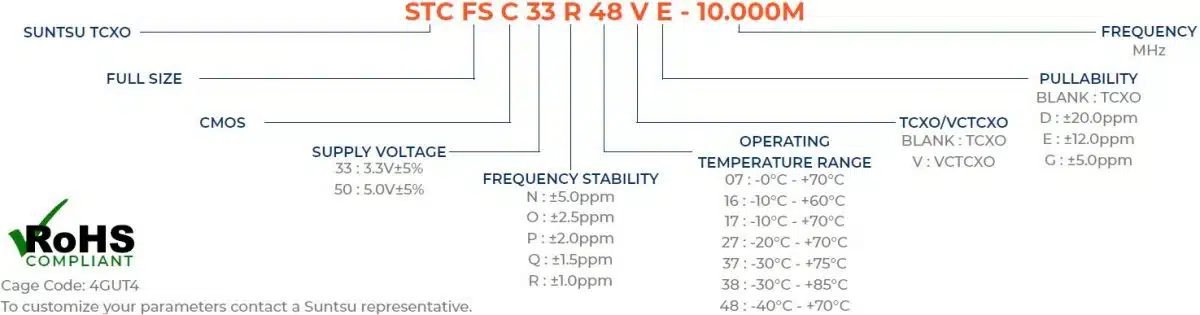

Part Numbering Guide

Electrical Parameters

ParametersUnitsMinTypicalMaxRemarks
Frequency RangeMHz1250~160MHz at 5.0V
Frequency Tolerance at +25ºCppm-1.5+1.5
Freq. Stability vs. Op Temp.ppm-1.0+1.0See part numbering guide for options.
Freq. Stability vs. Supply Voltageppm-0.3+0.3VDD±5% Change
Freq. Stability vs. Loadppm-0.2+0.2±10% Change
Freq. Stability vs. Aging/Yearppm-1.0+1.01 year
Operating Temperature°C-40+85See part numbering guide for options.
Storage Temperature°C-55+125
Supply Voltage (VDD) - 3.3V OptionV3.1353.33.465See part numbering guide for options.
Supply Voltage (VDD) - 5.0V OptionV4.7505.05.250See part numbering guide for options.
Current (IDD)mA50
Current Voltage (VC, VCTCXO) - 3.3V OptionV0.33.0
Current Voltage (VC, VCTCXO) - 5.0V OptionV0.54.5
Pullability (VCTCXO)ppm±5.0±12.0See part numbering guide for options.
Linearity (VCTCXO)%10
Output Load (CMOS)pF15
Output Logic HIGH Level (VOH)V0.9*VDD
Output Logic LOW Level (VOL)V0.1*VDD
Rise (TR) And Fall (TF) Timens5
Symmetry (Duty Cycle)%405060
Start-Up Timems3
Frequency Adjustmentppm-3+3
Phase Noise (Typical) 10Hz OffsetdBc/Hz-80
Phase Noise (Typical) 100Hz OffsetdBc/Hz-120
Phase Noise (Typical) 1KHz OffsetdBc/Hz-135
Phase Noise (Typical) 10KHz OffsetdBc/Hz-140
Phase Noise (Typical) 100KHz OffsetdBc/Hz-145

Outline Drawing & Recommended Landed Pattern
