Schottky Diode (BAT54 / BAS70) Solutions
In contemporary design, power efficiency is crucial. Schottky barrier diodes, such as the BAT54 and BAS70 series, play a vital role in high-efficiency power supplies, DC-DC converters, and reverse-polarity protection circuits. Their main advantage is their very low forward voltage (VF), which reduces power loss in the form of heat.
When a component like this goes on allocation, an engineer’s greatest concern is being required to use a standard diode with a higher forward voltage (VF). This could disrupt the entire power budget, shorten battery life, and compromise the thermal design.
Our authorized UTC alternatives are specifically designed to meet essential performance specifications, ensuring that your power budget and efficiency calculations are accurate. For purchasing managers and operations managers in contract manufacturing, this solution addresses the issue of potential line downtime. Instead of incurring expedited shipping fees for parts that may arrive unpredictably, you can ensure immediate availability and a stable forecast. This allows you to maintain efficient power circuits and keep your production lines running smoothly.

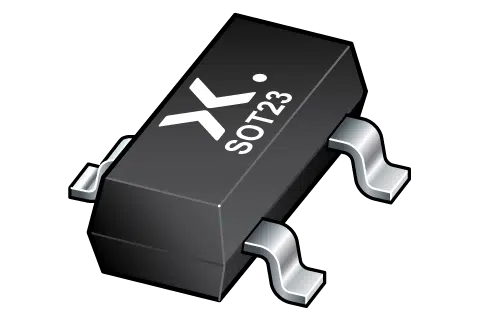

Nexperia Part Description Suntsu Alternative Package Datasheet BAT54 Series Schottky Barrier Diode UTC BAT54 Series SOT-23 [Download Datasheet] BAS70 Series Schottky Barrier Diode UTC BAS70 Series SOT-23 [Download Datasheet]
Contact us today to speak with an expert, request samples, and schedule a comprehensive analysis of your Bill of Materials.
FAQs
“Form-Fit-Function” is an engineering term verifying that a replacement component matches the original in its physical and technical specifications.
- Form: The part has the same physical dimensions, package (e.g., SOT-23), and pinout as the original. It will physically drop onto your existing PCB footprint without any layout changes.
- Fit: The part correctly connects to the system, both physically (pin-to-pin) and electrically.
- Function: The part performs to the same key electrical specifications as the original, such as voltage ratings, current handling, forward voltage ($V_F$), and switching speed.
It’s common for two manufacturers’ datasheets to show slight variations, especially in “typical” values, which are not guaranteed. Your focus should be on the guaranteed “min/max” specifications (e.g., maximum forward voltage at a given current, maximum reverse leakage).
This is the key strategic question. This shortage exposed a single-source risk in your BOM. The solution is to move from reactive “firefighting” to proactive supply chain design.
Suntsu partners with program managers on this through our BOM Analysis and Cost Reduction service. Before you finalize your next design, send your preliminary BOM to our engineering team. We will analyze every line item to identify high-risk, single-source, or soon-to-be-obsolete components. We can then recommend pre-qualified, FFF-compatible alternatives from our authorized lines, building a resilient and cost-effective supply chain from day one.
This is a critical distinction in the electronics supply chain.
- An Authorized (or Franchised) Distributor has a direct, contractual relationship with the component manufacturer. This guarantees a factory-direct, fully traceable supply chain, ensuring 100% authentic parts.
- An Independent Distributor (sometimes called a broker) is not contracted with the manufacturer. They specialize in sourcing components from the global “open market,” which is essential for finding hard-to-find, EOL, and obsolete parts or mitigating shortages.
Suntsu operates on a hybrid model. We are an authorized distributor for a wide range of manufacturers and a world-class independent distributor. This gives our customers the security of a franchised line and the flexibility of a global sourcing partner, all under one roof.
A Bill of Materials (BOM) Analysis is a proactive service where our component engineering team reviews your entire parts list. We don’t just look for cost savings; we identify high-risk components. This includes:
- Single-source parts with no alternatives.
- Components approaching End-of-Life (EOL).
- Parts with known long lead times or price volatility.
You should request a BOM analysis before you finalize a new design. This allows us to recommend pin-for-pin compatible alternatives and de-risk your product long before it ever hits production.
