SLO75P Series – 7.0MM X 5.0MM Ceramic SMD Low Current 6 Pad LVPECL Oscillator

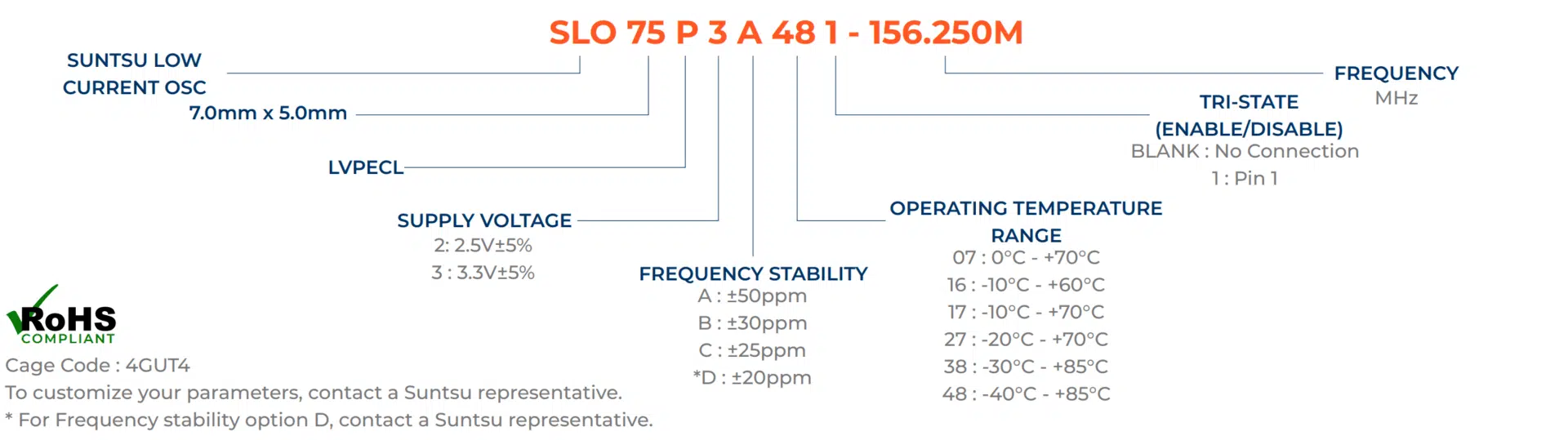

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 100 | 320 | 135~175MHz(1.8V), 100~320MHz(2.5&3.3V) | |
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 2.5V Option | V | 2.375 | 2.5 | 2.625 | |
| Supply Voltage (VDD) - 3.3V Option | V | 3.135 | 3.3 | 3.465 | |
| Current (IDD) | mA | 50 | |||
| Output Load ((LVPECL) | Ω | 50 | 50 Ω into VDD-2.0VDC | ||
| Output Logic Levels High (VOH at 2.5V) | V | 1.415 | 1.760 | ||
| Output Logic Levels Low (VOL at 2.5V) | V | 0.670 | 1.195 | ||
| Output Logic Levels High (VOH at 3.3V) | V | 2.215 | 2.420 | ||
| Output Logic Levels Low (VOL at 3.3V) | V | 1.470 | 1.745 | ||
| Rise (TR) and Fall (TF) Time | ns | 0.15 | 0.3 | Measured at 20% to 80% of Waveform | |
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage - Disable | V | 0.3*VDD | |||
| Start-Up Time | ms | 5 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 0.12 | 0.15 |

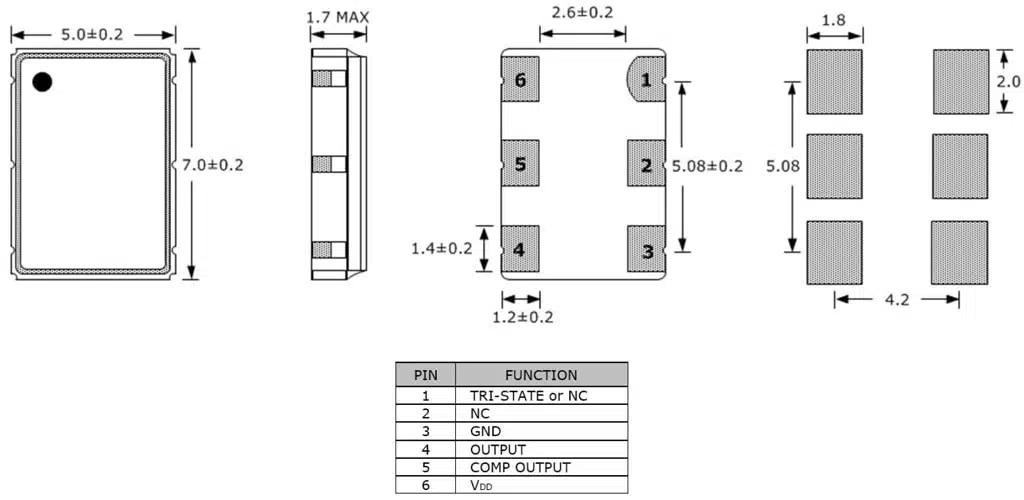

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
