Specialized Switches for High-Speed Protocols
As designs become increasingly interconnected, the demand for protocol-specific switching rises. Dioo has created a specialized line of Integrated Circuit Switch products, specifically designed to meet the most common industry standards.
Managing data lines for USB 2.0 and USB 3.0 demands switches with very low parasitic capacitance to preserve eye-diagram quality. Likewise, MIPI switches are tailored for high-speed camera and display interfaces. These switches allow multiple sensors to share a single processor port, a typical feature in medical imaging devices-a subject detailed further in our Guide to Imaging Processors.
For system-level communication, Dioo provides PCIe high-speed switches capable of supporting multi-lane configurations with minimal skew. Meanwhile, their I2C switches serve as a straightforward and efficient solution for resolving address conflicts on shared buses or isolating segments to reduce capacitive loading, functioning essentially as a "bus expander" in complex systems.
Innovation in the Analog Switch sector frequently arises from specialized operating modes. Among the most distinctive products in the Dioo portfolio is the "Depletion Mode" switch. Unlike typical enhancement-mode MOSFET switches, which require power at the gate to close the switch, Depletion Mode switches are "normally closed" when no power is supplied.
The main benefit of Depletion Mode in audio isolation is its capacity to keep a signal path active even when powered down or to offer a default "safe" routing that doesn't drain battery. This is especially helpful in avoiding "pops and clicks" during system startup, as the switch can disconnect the speakers until the audio circuitry settles.
Dioo's Multiple Switch Detection Interface (MDI) solutions are ideal for industrial applications that need high-density sensing. They monitor several external switches and transmit their status to a microcontroller through a serial interface, greatly decreasing the I/O demands on the main processor.
Why Dioo and Suntsu?
Choosing an Analog Switch affects your product’s reliability, signal quality, and power consumption. Dioo Microcircuits provides a wide range of options, from basic USB muxes to advanced high-voltage and depletion-mode switches.
Partnering with Suntsu Electronics gives you access to a high-performance portfolio supported by an organization skilled in Quality Assurance. We encourage you to explore the Dioo line and discover how these precise Integrated Circuit Switch solutions can enhance your upcoming project.
To learn more about choosing the appropriate components for your signal chain, refer to our Quick Guide to Amplifiers or reach out to our engineering team today for a detailed technical consultation.
Ready to optimize your signal chain with Dioo’s high-performance analog switches? Contact our engineering team today to discuss your technical specifications or request a quote to secure the components you need for your next production run.
FAQs

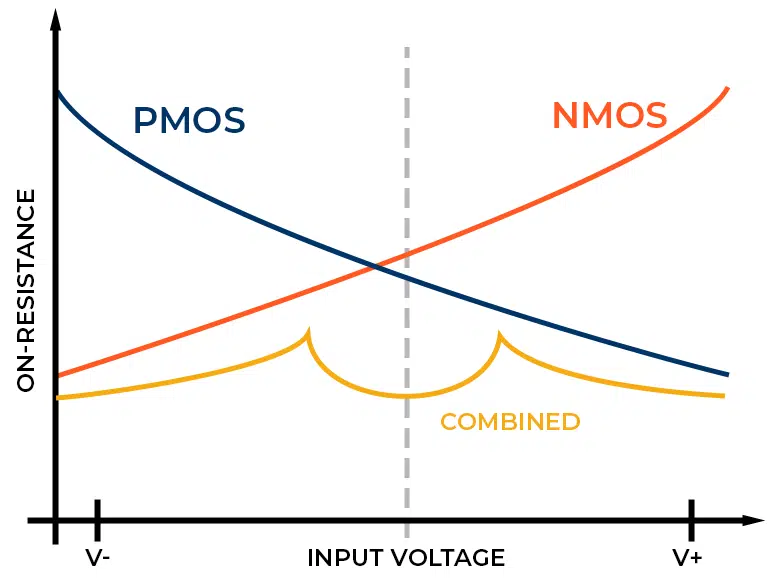

While they use similar internal CMOS technology, they serve different functions. An analog switch typically connects or disconnects a single input to a single output (like a standard SPST relay). A multiplexer, on the other hand, routes multiple different inputs into one single output line. Many engineers use the terms interchangeably, but a multiplexer is essentially an array of analog switches controlled by digital logic to select a specific channel.
Yes. Unlike digital buffers or logic gates which are strictly unidirectional, the MOSFET architecture inside a standard analog switch is inherently bidirectional. This means the “input” and “output” pins are interchangeable; an analog signal can flow equally well from Source-to-Drain as it can from Drain-to-Source.
Yes. Analog switches are completely protocol-agnostic. While digital switches are designed specifically to recognize discrete high/low logic levels and recreate them, an analog switch simply passes whatever voltage is presented to it. Because of this, analog switches are frequently used to route high-speed digital protocols like I2C, SPI, and USB.
Charge injection is a brief voltage spike (transient) that occurs when the switch is toggled on or off. It happens because the internal capacitance of the switch’s MOSFET gate discharges into the analog signal path when the control logic changes state. In high-precision applications (like medical instrumentation or high-end audio), this small voltage spike can cause measurement errors or audible “clicks,” making low-charge-injection switches highly desirable.
In a standard CMOS analog switch, if the power supply drops to 0V while a live analog signal is still applied to the input, the signal can forward-bias the internal parasitic diodes. This can cause the switch to inadvertently conduct or even permanently damage the IC. If this “hot-plug” scenario is a risk in your design, you must specify a switch with Power-Off Protection, which guarantees the switch remains in a high-impedance (disconnected) state even if the power supply is removed.
