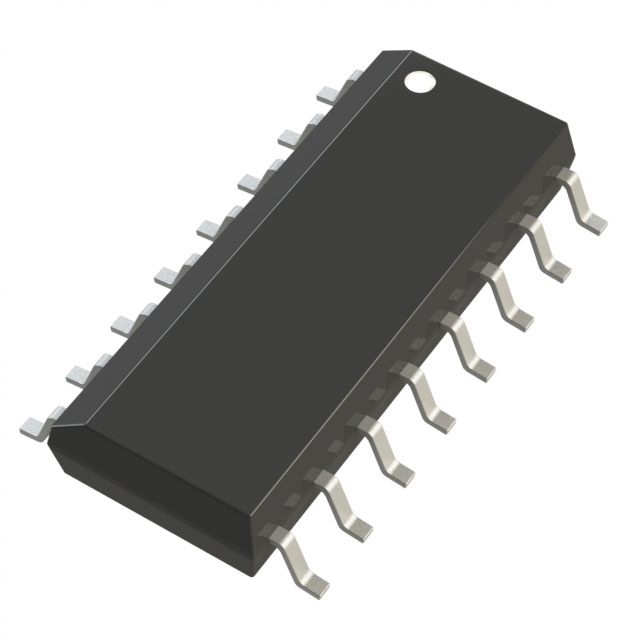

74HCT4316D-Q100J
74HCT4316D-Q100/SOT109/SO16
| Part Description |
4 Circuit IC Switch 1:1 135Ohm 16-SO |
|---|---|
| Quantity | 1,267 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SO |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 135Ohm |
| Channel-to-Channel Matching (ΔRon): | 6Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 5.5V, 4.5V ~ 10V |
| Switch Time (Ton, Toff) (Max): | 46ns |
| -3db Bandwidth: | 160MHz |
| Channel Capacitance (CS(off), CD(off)): | 3.5pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -60dB @ 1MHz |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
