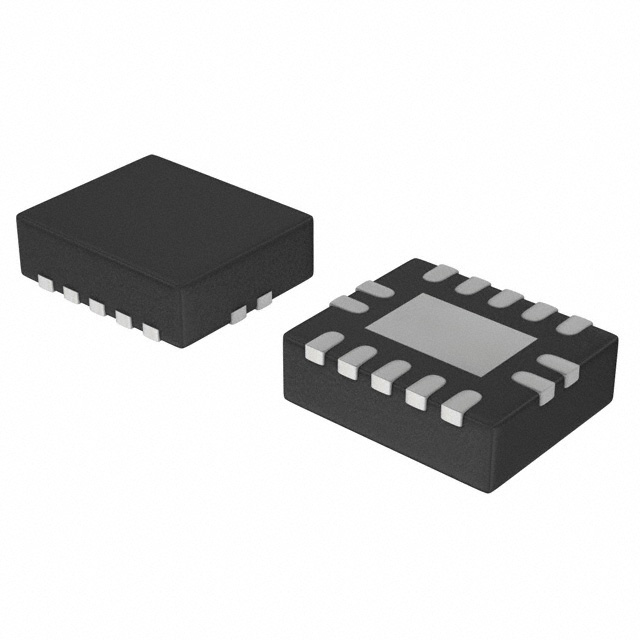

74LVC4066BQ-Q100X
IC SW SPST-NOX4 10OHM 14DHVQFN
| Part Description |
4 Circuit IC Switch 1:1 10Ohm 14-DHVQFN (2.5x3) |
|---|---|
| Quantity | 599 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 14-VFQFN Exposed Pad |
|---|---|
| Device Package | 14-DHVQFN (2.5×3) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 10Ohm |
| Voltage – Supply, Single (V+): | 1.65V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 3.9ns, 5ns |
| -3db Bandwidth: | 500MHz |
| Charge Injection: | 7.5pC |
| Channel Capacitance (CS(off), CD(off)): | 8pF |
| Current – Leakage (IS(off)) (Max): | 5µA |
| Crosstalk: | -56dB @ 1MHz |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
