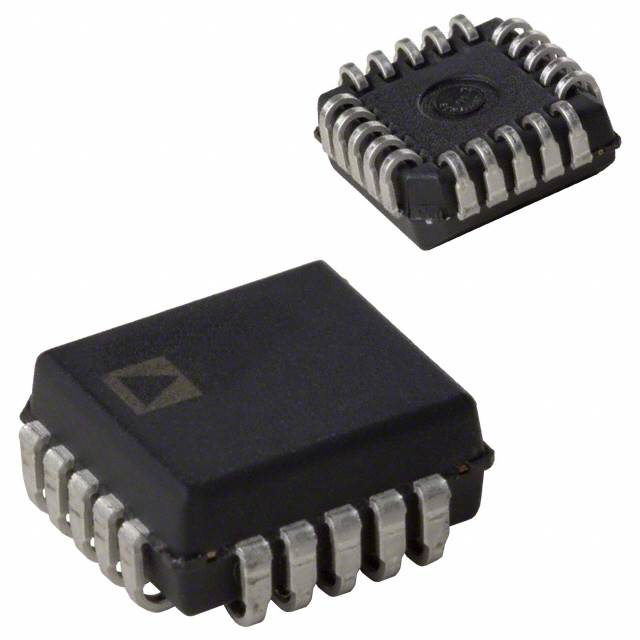

AD7512DIJP
IC SWITCH SPDT X 1 100OHM 20PLCC
| Part Description |
1 Circuit IC Switch 2:1 100Ohm 20-PLCC (9x9) |
|---|---|
| Quantity | 641 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-LCC (J-Lead) |
|---|---|
| Device Package | 20-PLCC (9×9) |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 1Ohm |
| Voltage – Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 180ns, 350ns (Typ) |
| Channel Capacitance (CS(off), CD(off)): | 8pF, 1pF |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
