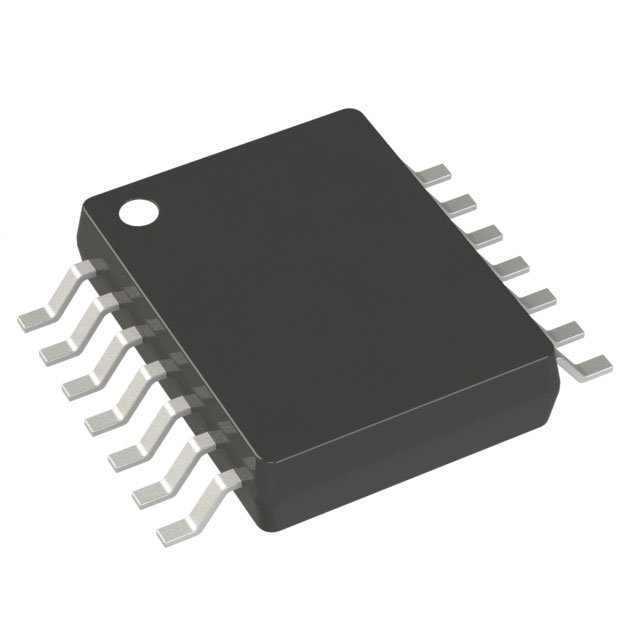

ADG1204YRUZ
IC SWITCH SP4TX1 190OHM 14TSSOP
| Part Description |
1 Circuit IC Switch 4:1 190Ohm 14-TSSOP |
|---|---|
| Quantity | 324 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 14-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 14-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 190Ohm |
| Channel-to-Channel Matching (ΔRon): | 6Ohm |
| Voltage – Supply, Single (V+): | 12V |
| Voltage – Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 85ns, 110ns |
| -3db Bandwidth: | 800MHz |
| Charge Injection: | -0.7pC |
| Channel Capacitance (CS(off), CD(off)): | 1.5pF, 4.2pF |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Crosstalk: | -80dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
