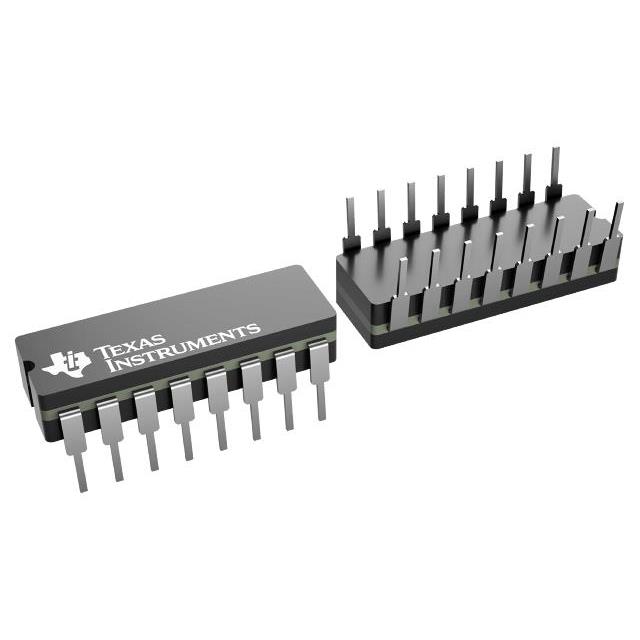

CD54HC4051F
HIGH SPEED CMOS LOGIC ANALOG MUL
| Part Description |
1 Circuit IC Switch 8:1 160Ohm 16-CDIP |
|---|---|
| Quantity | 643 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 16-CDIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 16-CDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP8T – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 160Ohm |
| Channel-to-Channel Matching (ΔRon): | 8.5Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 6V |
| -3db Bandwidth: | 180MHz |
| Channel Capacitance (CS(off), CD(off)): | 10pF |
| Current – Leakage (IS(off)) (Max): | 400nA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | Not Applicable |
| ECCN | N/A |
| HTS Code | N/A |
