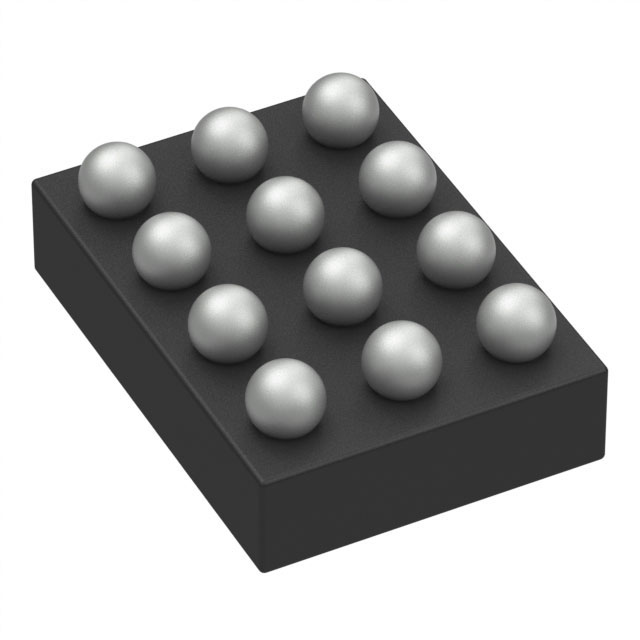

FSA1153UCX
IC SWITCH DP3T X 1 2OHM 12WLCSP
| Part Description |
1 Circuit IC Switch 3:1 2Ohm 12-WLCSP (1.41x1.575) |
|---|---|
| Quantity | 26 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | onsemi |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 31 Weeks |
| Datasheet |
Specifications
| Part Package | 12-UFBGA, WLCSP |
|---|---|
| Device Package | 12-WLCSP (1.41×1.575) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | DP3T |
| Multiplexer/Demultiplexer Circuit: | 3:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 2Ohm |
| Channel-to-Channel Matching (ΔRon): | 200mOhm (Max) |
| Voltage – Supply, Single (V+): | 2.7V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 80µs, 400ns (Typ) |
| -3db Bandwidth: | 500MHz |
| Channel Capacitance (CS(off), CD(off)): | 2.5pF, 7pF |
| Current – Leakage (IS(off)) (Max): | 100nA |
| Crosstalk: | -120dB @ 1kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
