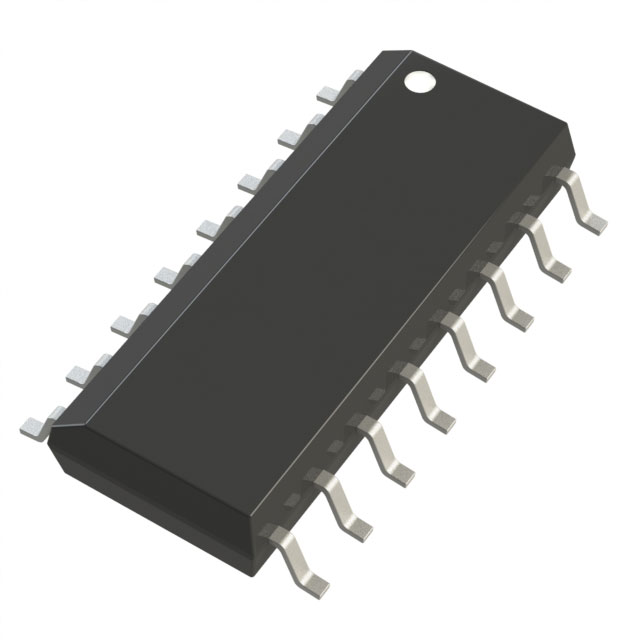

HEF4052BT,653
IC SWITCH SP4T X 2 155OHM 16SO
| Part Description |
2 Circuit IC Switch 4:1 155Ohm 16-SO |
|---|---|
| Quantity | 360 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SO |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 155Ohm |
| Channel-to-Channel Matching (ΔRon): | 5Ohm |
| Voltage – Supply, Single (V+): | 3V ~ 15V |
| -3db Bandwidth: | 70MHz |
| Channel Capacitance (CS(off), CD(off)): | 7.5pF |
| Current – Leakage (IS(off)) (Max): | 200nA |
| Crosstalk: | -50dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
