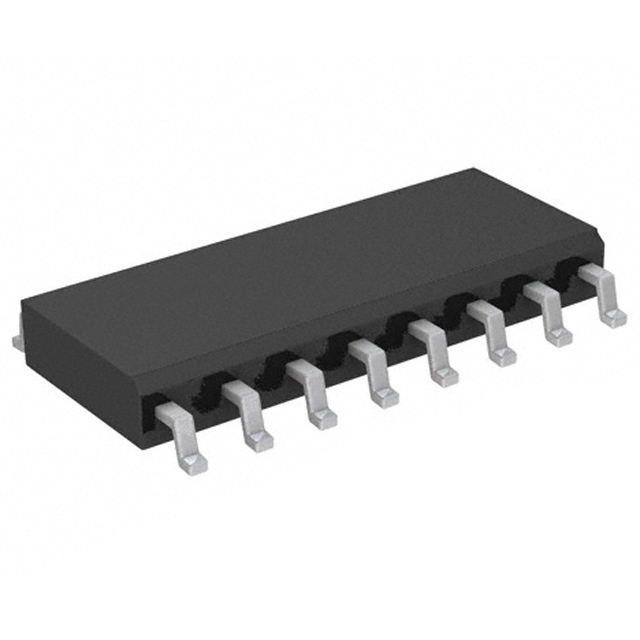

HI9P0548-596
IC MUX 8:1 1.8KOHM 16SOIC
| Part Description |
1 Circuit IC Switch 8:1 1.8kOhm 16-SOIC |
|---|---|
| Quantity | 522 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 75°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 1.8kOhm |
| Channel-to-Channel Matching (ΔRon): | 126Ohm |
| Voltage – Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 300ns, 300ns (Typ) |
| Channel Capacitance (CS(off), CD(off)): | 10pF, 25pF |
| Current – Leakage (IS(off)) (Max): | 30pA (Typ) |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
