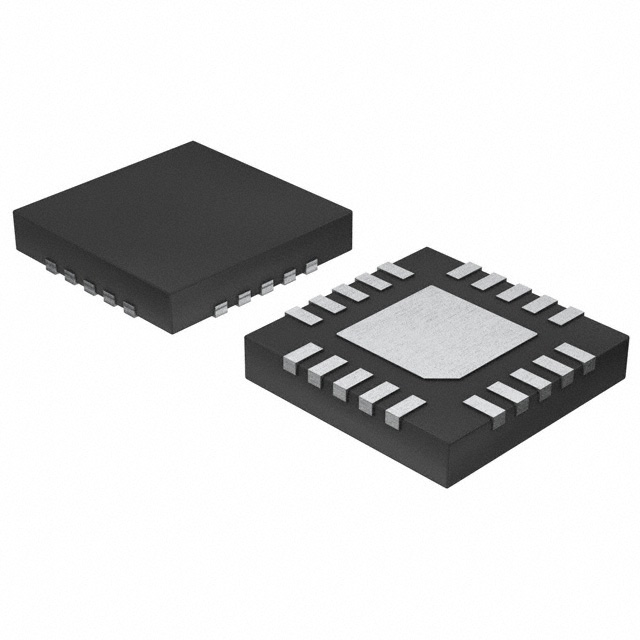

MAX14779ATP+T
QUAD SPST / DUAL SPDT BEYOND-THE
| Part Description |
2 Circuit IC Switch 2:1 2.5Ohm 20-TQFN (4x4) |
|---|---|
| Quantity | 705 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 24 Weeks |
| Datasheet |
Specifications
| Part Package | 20-WFQFN Exposed Pad |
|---|---|
| Device Package | 20-TQFN (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Switch Circuit: | SPDT – NO |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 2.5Ohm |
| Channel-to-Channel Matching (ΔRon): | 18mOhm |
| Voltage – Supply, Single (V+): | 3V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 600µs, 160µs |
| -3db Bandwidth: | 78MHz |
| Charge Injection: | 850pC |
| Channel Capacitance (CS(off), CD(off)): | 54pF, 54pF |
| Current – Leakage (IS(off)) (Max): | 200nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
