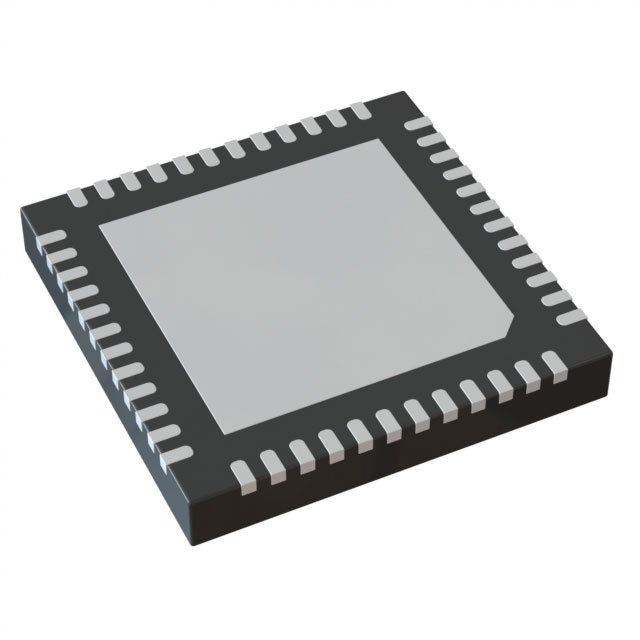

MAX14866UTM+T
IC SWITCH SPST X 16 13OHM 48TQFN
| Part Description |
16 Circuit IC Switch 1:1 13Ohm 48-TQFN (7x7) |
|---|---|
| Quantity | 1,497 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 38 Weeks |
| Datasheet |
Specifications
| Part Package | 48-WFQFN Exposed Pad |
|---|---|
| Device Package | 48-TQFN (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 85°C |
| Switch Circuit: | SPST |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 16 |
| On-State Resistance (Max): | 13Ohm |
| Voltage – Supply, Single (V+): | 1.7V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 4µs, 4µs |
| -3db Bandwidth: | 50MHz |
| Charge Injection: | 100pC |
| Channel Capacitance (CS(off), CD(off)): | 7.7pF |
| Current – Leakage (IS(off)) (Max): | 1µA |
| Crosstalk: | -65dB @ 5MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
