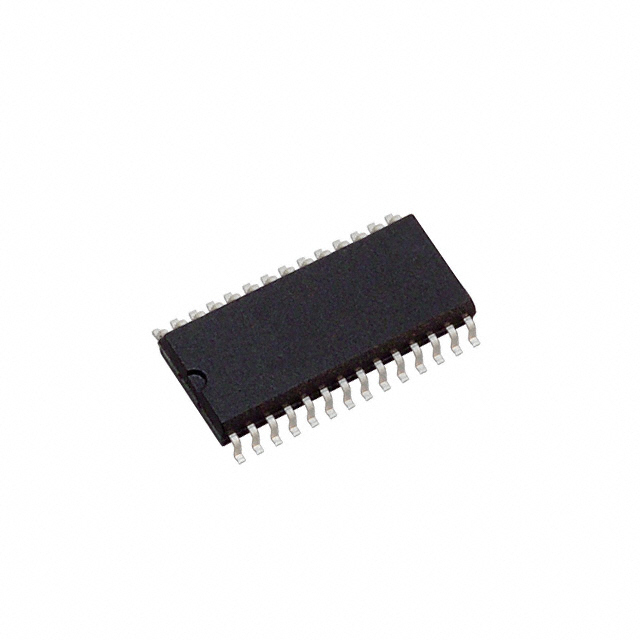

MPC506AUG4
IC MUX 16:1 1.5KOHM 28SOIC
| Part Description |
1 Circuit IC Switch 16:1 1.5kOhm 28-SOIC |
|---|---|
| Quantity | 1,268 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Discontinued at Digi-Key |
| Manufacturer Standard Lead Time | 12 Weeks |
| Datasheet |
Specifications
| Part Package | 28-SOIC (0.295″”, 7.50mm Width) |
|---|---|
| Device Package | 28-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 16:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 1.5kOhm |
| Voltage – Supply, Dual (V±): | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max): | 200ns, 250ns (Typ) |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 50pF |
| Current – Leakage (IS(off)) (Max): | 500pA (Typ) |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2 (1 Year) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
