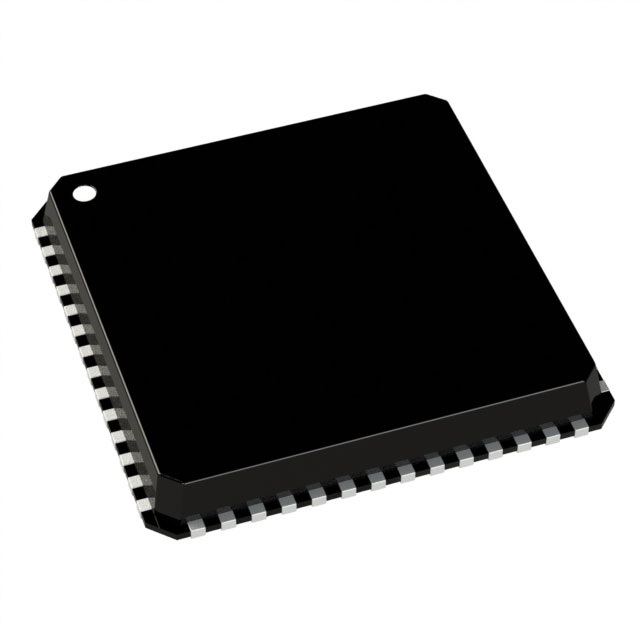

ADUC843BCP62Z-5
IC MCU 8BIT 62KB FLASH 56LFCSP
| Part Description |
8052 MicroConverter® ADuC8xx Microcontroller IC 8-Bit 16.78MHz 62KB (62K x 8) FLASH 56-LFCSP-VQ (8x8) |
|---|---|
| Quantity | 367 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 56-VFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 56-LFCSP-VQ (8×8) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 8052 |
| Core Size: | 8-Bit |
| Speed: | 16.78MHz |
| Connectivity: | I2C, SPI, UART/USART |
| Peripherals: | DMA, PSM, PWM, Temp Sensor, WDT |
| Number of I/O: | 32 |
| Program Memory Size: | 62KB (62K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 2.25K x 8 |
| Voltage – Supply (Vcc/Vdd): | 4.75V ~ 5.25V |
| Data Converters: | A/D 8x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
