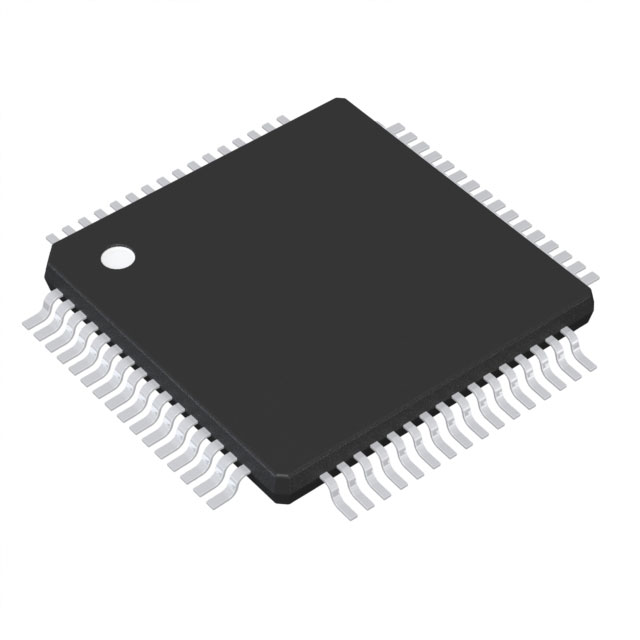

LM3S5K36-IQR80-C0
IC MCU 32BIT 128KB FLASH 64LQFP
| Part Description |
ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 5000 Microcontroller IC 32-Bit Single-Core 80MHz 128KB (128K x 8) FLASH 64-LQFP (10x10) |
|---|---|
| Quantity | 1,918 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 64-LQFP |
|---|---|
| Device Package | 64-LQFP (10×10) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | ARM® Cortex®-M3 |
| Core Size: | 32-Bit Single-Core |
| Speed: | 80MHz |
| Connectivity: | CANbus, I2C, IrDA, LINbus, Microwire, QEI, SPI, SSI, UART/USART, USB |
| Peripherals: | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O: | 33 |
| Program Memory Size: | 128KB (128K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 24K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.08V ~ 1.32V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
