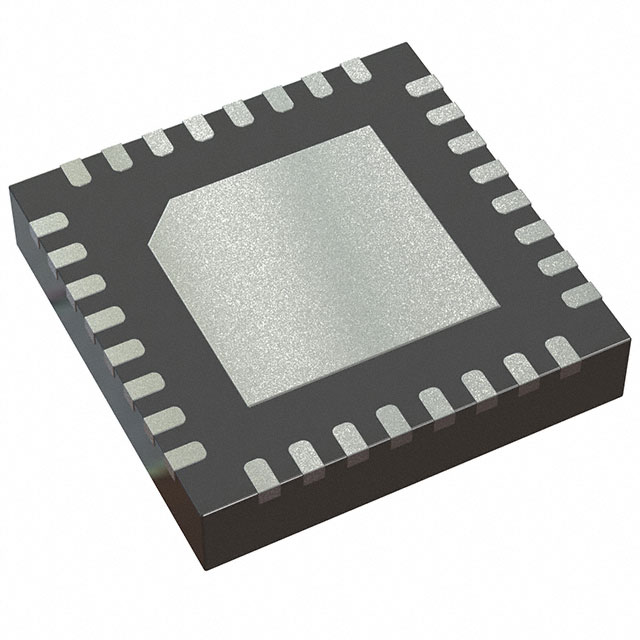

MAX32520-BNJ+
IC MCU 32BIT 2MB FLASH 32TQFN
| Part Description |
ARM® Cortex®-M4F DeepCover® Microcontroller IC 32-Bit Single-Core 120MHz 2MB (2M x 8) FLASH 32-TQFN (5x5) |
|---|---|
| Quantity | 919 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Last Time Buy |
| Manufacturer Standard Lead Time | 30 Weeks |
Specifications
| Part Package | 32-WFQFN Exposed Pad |
|---|---|
| Device Package | 32-TQFN (5×5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor: | ARM® Cortex®-M4F |
| Core Size: | 32-Bit Single-Core |
| Speed: | 120MHz |
| Connectivity: | I2C, SPI, UART/USART |
| Peripherals: | DMA, PWM, WDT |
| Number of I/O: | 27 |
| Program Memory Size: | 2MB (2M x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 170K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.71V ~ 3.6V |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 5A992C |
| HTS Code | 8542.31.0001 |
