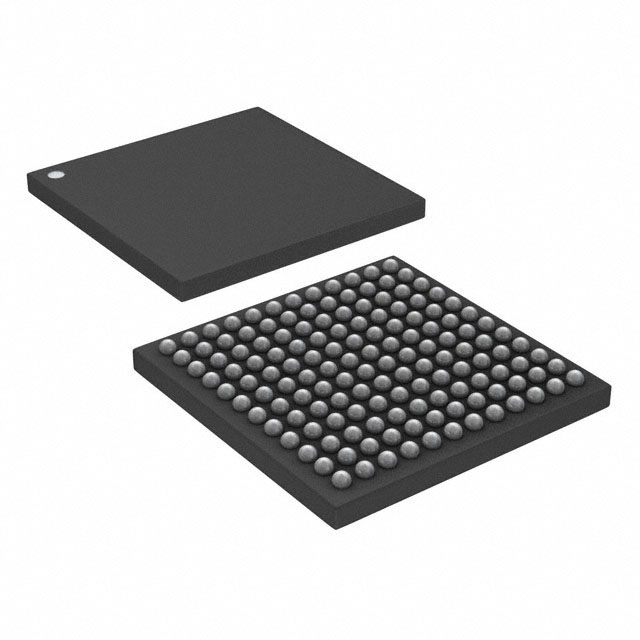

MAX32560-LBS+T
IC MCU 32BIT 1MB FLASH 144CTBGA
| Part Description |
ARM® Cortex®-M3 DeepCover® Microcontroller IC 32-Bit Single-Core 108MHz 1MB (1M x 8) FLASH 144-CTBGA (10x10) |
|---|---|
| Quantity | 1,244 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 23 Weeks |
| Datasheet |
Specifications
| Part Package | 144-TFBGA |
|---|---|
| Device Package | 144-CTBGA (10×10) |
| Mounting Method | Surface Mount |
| Operating Temperature | – |
| Core Processor: | ARM® Cortex®-M3 |
| Core Size: | 32-Bit Single-Core |
| Speed: | 108MHz |
| Connectivity: | I2C, SPI, UART/USART, USB |
| Peripherals: | DMA, PWM |
| Number of I/O: | 68 |
| Program Memory Size: | 1MB (1M x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 384K x 8 |
| Voltage – Supply (Vcc/Vdd): | 3.3V |
| Data Converters: | A/D 2x10b; A/D 1x8b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
