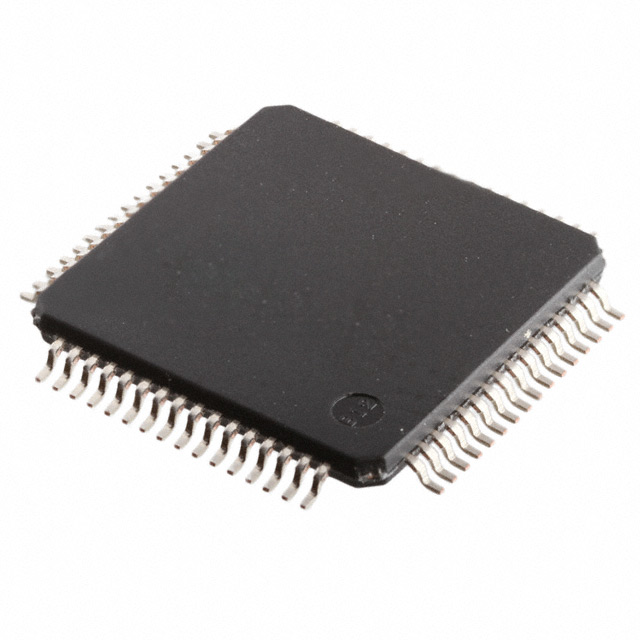

MN101LR05DXW
IC MCU 8BIT 64KB RERAM 80TQFP
| Part Description |
AM13L MN101L Microcontroller IC 8-Bit 10MHz 64KB (64K x 8) ReRAM 80-TQFP (12x12) |
|---|---|
| Quantity | 663 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 80-TQFP |
|---|---|
| Device Package | 80-TQFP (12×12) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | AM13L |
| Core Size: | 8-Bit |
| Speed: | 10MHz |
| Connectivity: | I2C, UART/USART |
| Peripherals: | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O: | 69 |
| Program Memory Size: | 64KB (64K x 8) |
| Program Memory Type: | ReRAM |
| RAM Size: | 4K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
| Data Converters: | A/D 8x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | RoHS Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
