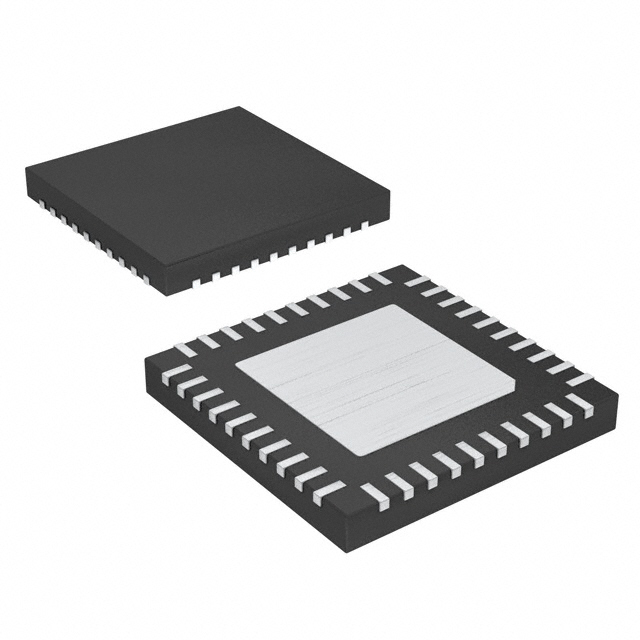

MSP430F5152IRSBT
IC MCU 16BIT 16KB FLASH 40WQFN
| Part Description |
MSP430 CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 16KB (16K x 8) FLASH 40-WQFN (5x5) |
|---|---|
| Quantity | 497 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 40-WFQFN Exposed Pad |
|---|---|
| Device Package | 40-WQFN (5×5) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | MSP430 CPUXV2 |
| Core Size: | 16-Bit |
| Speed: | 25MHz |
| Connectivity: | I2C, IrDA, SCI, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O: | 31 |
| Program Memory Size: | 16KB (16K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 2K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
| Data Converters: | A/D 11x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2 (1 Year) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
