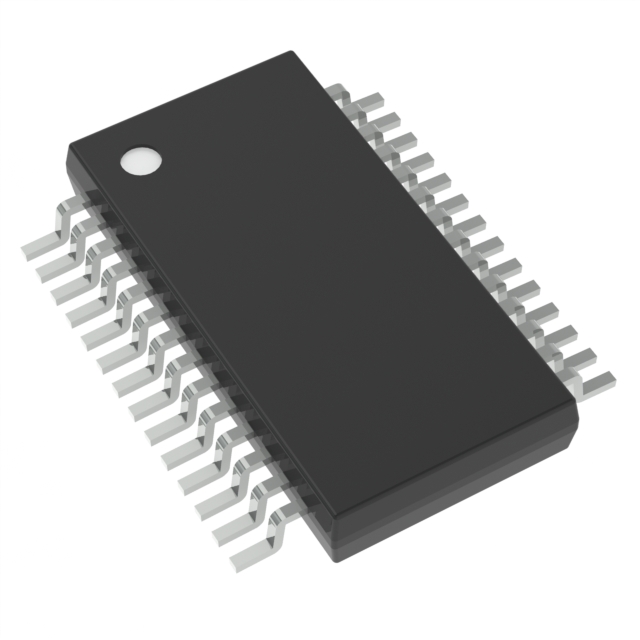

PIC16LF1566-E/SS
IC MCU 8BIT 14KB FLASH 28SSOP
| Part Description | PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 28-SSOP |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Leadtime | 4 Weeks |
| Datasheet | |
| Quantity | 739 Available |
Specifications
| Part Package | 28-SSOP (0.209″”, 5.30mm Width) |
|---|---|
| Device Package | 28-SSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | PIC |
| Core Size: | 8-Bit |
| Speed: | 32MHz |
| Connectivity: | I2C, LINbus, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O: | 25 |
| Program Memory Size: | 14KB (8K x 14) |
| Program Memory Type: | FLASH |
| RAM Size: | 1K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 3.6V |
| Data Converters: | A/D 23x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
