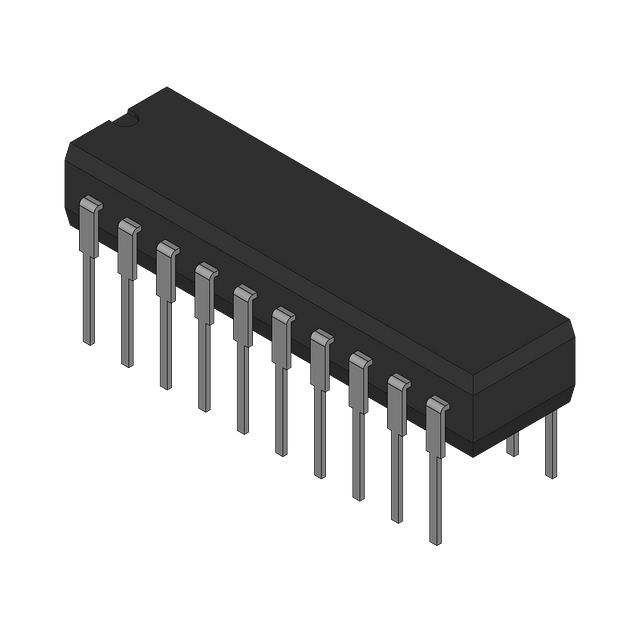

R5F2M120ANDD#U0
IC MCU 16BIT 2KB FLASH 20DIP
| Part Description |
R8C R8C/Mx/12A Microcontroller IC 16-Bit 20MHz 2KB (2K x 8) FLASH 20-PDIP |
|---|---|
| Quantity | 398 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 20-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Core Processor: | R8C |
| Core Size: | 16-Bit |
| Speed: | 20MHz |
| Connectivity: | UART/USART |
| Peripherals: | POR, PWM, Voltage Detect, WDT |
| Number of I/O: | 17 |
| Program Memory Size: | 2KB (2K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 256 x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 5.5V |
| Data Converters: | A/D 6x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Not applicable |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
