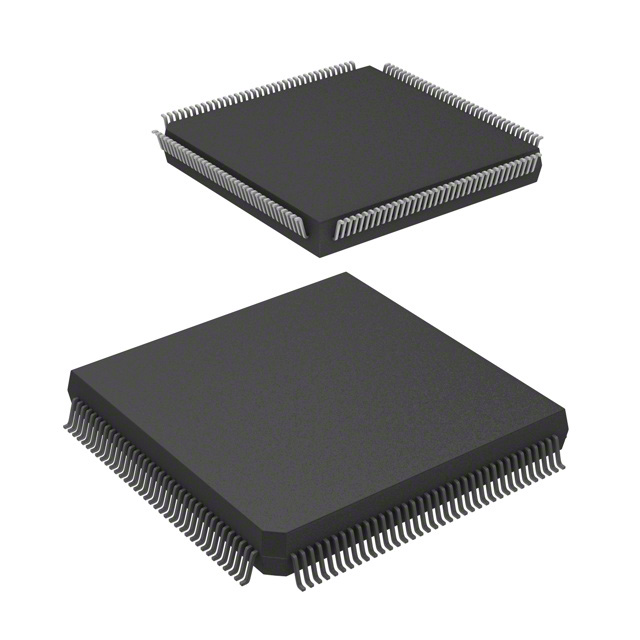

R5F564MLHDFB#V1
IC MCU 32BIT 4MB FLASH 144LQFP
| Part Description |
RXv2 RX600 Microcontroller IC 32-Bit Single-Core 120MHz 4MB (4M x 8) FLASH 144-LFQFP (20x20) |
|---|---|
| Quantity | 575 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Discontinued at Digi-Key |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications
| Part Package | 144-LQFP |
|---|---|
| Device Package | 144-LFQFP (20×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | RXv2 |
| Core Size: | 32-Bit Single-Core |
| Speed: | 120MHz |
| Connectivity: | CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB |
| Peripherals: | DMA, LVD, POR, PWM, WDT |
| Number of I/O: | 111 |
| Program Memory Size: | 4MB (4M x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 64K x 8 |
| RAM Size: | 552K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 3.6V |
| Data Converters: | A/D 29x12b; D/A 2x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
