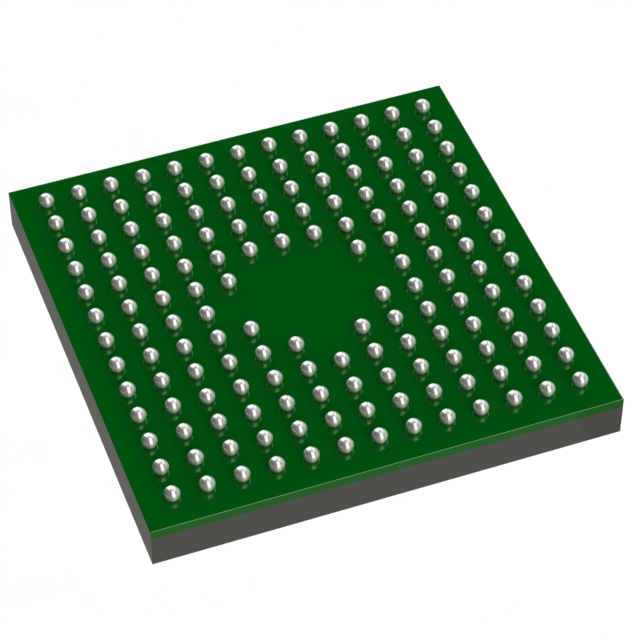

TM4C123BH6ZRBI7
IC MCU 32BIT 256KB FLASH 157BGA
| Part Description |
ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit Single-Core 80MHz 256KB (256K x 8) FLASH 157-BGA Microstar Junior (9x9) |
|---|---|
| Quantity | 639 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 157-VFBGA |
|---|---|
| Device Package | 157-BGA Microstar Junior (9×9) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | ARM® Cortex®-M4F |
| Core Size: | 32-Bit Single-Core |
| Speed: | 80MHz |
| Connectivity: | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Number of I/O: | 120 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 2K x 8 |
| RAM Size: | 32K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.08V ~ 3.63V |
| Data Converters: | A/D 24x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
