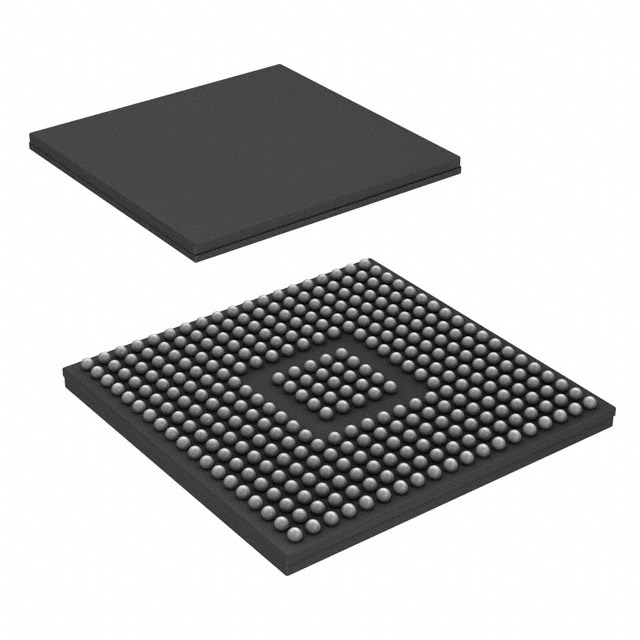

TMS5701225CZWTQQ1
IC MCU 32BIT 1.25MB FLASH 337BGA
| Part Description |
ARM® Cortex®-R4F Hercules™ TMS570 ARM® Cortex®-R Microcontroller IC 16/32-Bit 180MHz 1.25MB (1.25M x 8) FLASH 337-NFBGA (16x16) |
|---|---|
| Quantity | 805 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Texas Instruments |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 337-LFBGA |
|---|---|
| Device Package | 337-NFBGA (16×16) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | ARM® Cortex®-R4F |
| Core Size: | 16/32-Bit |
| Speed: | 180MHz |
| Connectivity: | CANbus, EBI/EMI, FlexRay, I2C, LINbus, MibSPI, SCI, SPI, UART/USART |
| Peripherals: | DMA, POR, PWM, WDT |
| Number of I/O: | 101 |
| Program Memory Size: | 1.25MB (1.25M x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 64K x 8 |
| RAM Size: | 192K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.14V ~ 3.6V |
| Data Converters: | A/D 24x12b |
| Oscillator Type: | External |
| Grade: | Automotive |
| Qualification: | AEC-Q100 |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
