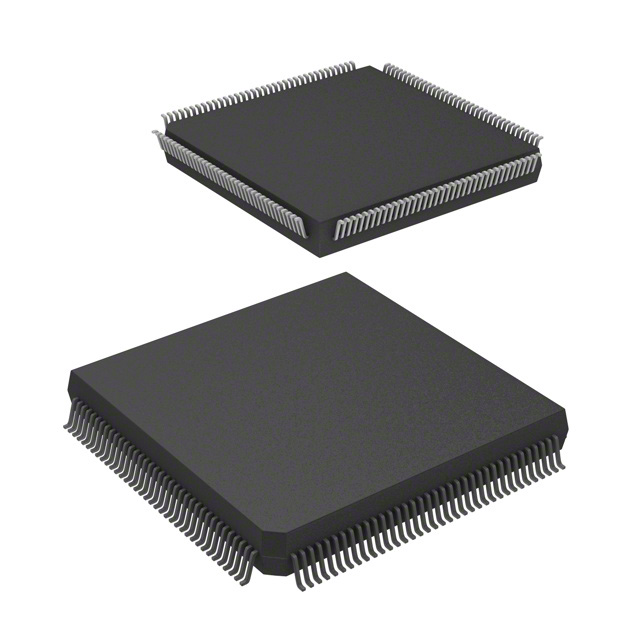

UPD70F3364GJ(A9)-GAE-E2-QS-AX
IC MCU 32BIT 384KB FLASH 144LQFP
| Part Description |
V850ES V850ES/Sx3 Microcontroller IC 32-Bit 32MHz 384KB (384K x 8) FLASH 144-LQFP (20x20) |
|---|---|
| Quantity | 866 Available (as of May 5, 2026) |
-GAE-E2-QS-AX.jpg)
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 144-LQFP |
|---|---|
| Device Package | 144-LQFP (20×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | V850ES |
| Core Size: | 32-Bit |
| Speed: | 32MHz |
| Connectivity: | CSI, EBI/EMI, I2C, UART/USART |
| Peripherals: | DMA, PWM, WDT |
| Number of I/O: | 128 |
| Program Memory Size: | 384KB (384K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 32K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.85V ~ 3.6V |
| Data Converters: | A/D 16x10b SAR; D/A 2x8b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
