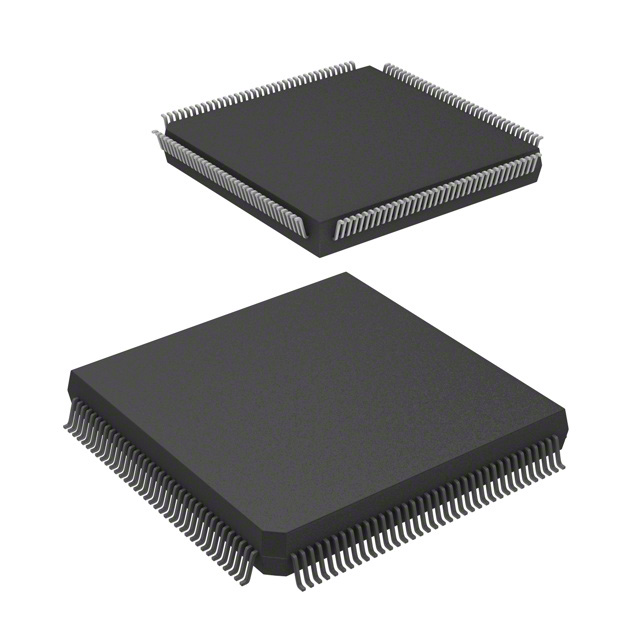

UPD70F3524GJA-GAE-G
IC MCU 32BIT 1MB FLASH 144LFQFP
| Part Description |
V850E2M V850E2/Dx4 Microcontroller IC 32-Bit Single-Core 80MHz 1MB (1M x 8) FLASH 144-LQFP (20x20) |
|---|---|
| Quantity | 683 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 144-LQFP |
|---|---|
| Device Package | 144-LQFP (20×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | V850E2M |
| Core Size: | 32-Bit Single-Core |
| Speed: | 80MHz |
| Connectivity: | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SPI, SSI, UART/USART, USB |
| Peripherals: | DMA, I2S, LCD, LVD, POR, PWM, WDT |
| Number of I/O: | 105 |
| Program Memory Size: | 1MB (1M x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 32K x 8 |
| RAM Size: | 96K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 32×10/12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | OBSOLETE |
| HTS Code | N/A |
