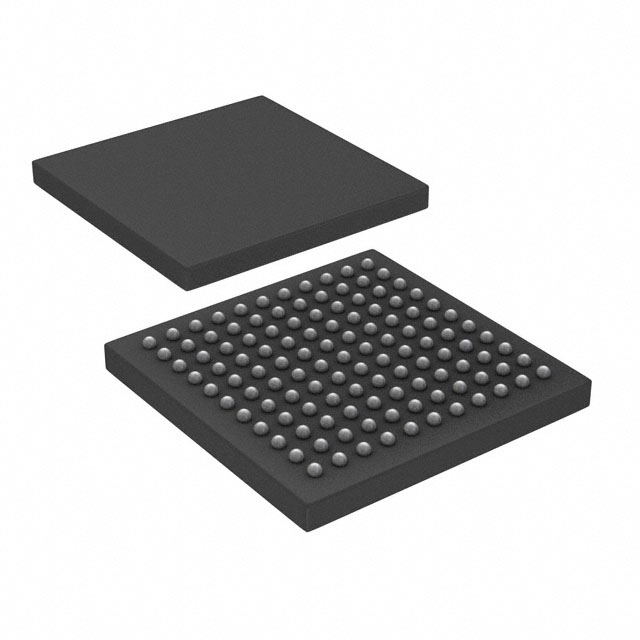

UPD70F3796F1-CAH-A
IC MCU 32BIT 512KB FLSH 121LFBGA
| Part Description |
V850ES V850ES/JG3-L Microcontroller IC 32-Bit Single-Core 20MHz 512KB (512K x 8) FLASH 121-LFBGA (8x8) |
|---|---|
| Quantity | 266 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 121-LFBGA |
|---|---|
| Device Package | 121-LFBGA (8×8) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | V850ES |
| Core Size: | 32-Bit Single-Core |
| Speed: | 20MHz |
| Connectivity: | CSI, EBI/EMI, I2C, UART/USART, USB |
| Peripherals: | DMA, LVD, PWM, WDT |
| Number of I/O: | 80 |
| Program Memory Size: | 512KB (512K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 40K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2V ~ 3.6V |
| Data Converters: | A/D 12x10b; D/A 2x8b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
