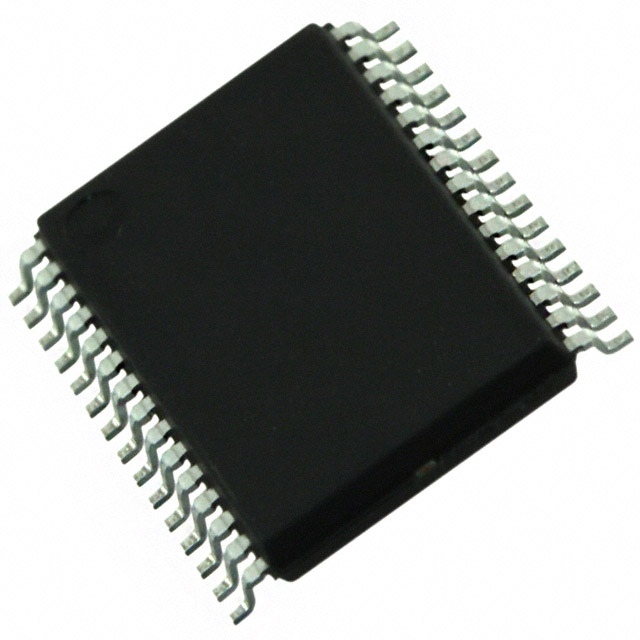

UPD78F0103HMC-5A4-A
IC MCU 8BIT 24KB FLASH 30SSOP
| Part Description |
78K/0 - Microcontroller IC 8-Bit 12MHz 24KB (24K x 8) FLASH 30-SSOP |
|---|---|
| Quantity | 1,527 Available (as of May 6, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 30-LSSOP (0.240″”, 6.10mm Width) |
|---|---|
| Device Package | 30-SSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 78K/0 |
| Core Size: | 8-Bit |
| Speed: | 12MHz |
| Connectivity: | 3-Wire SIO, UART/USART |
| Peripherals: | WDT |
| Number of I/O: | 22 |
| Program Memory Size: | 24KB (24K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 768 x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.5V ~ 5.5V |
| Data Converters: | A/D 4x10b SAR |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
