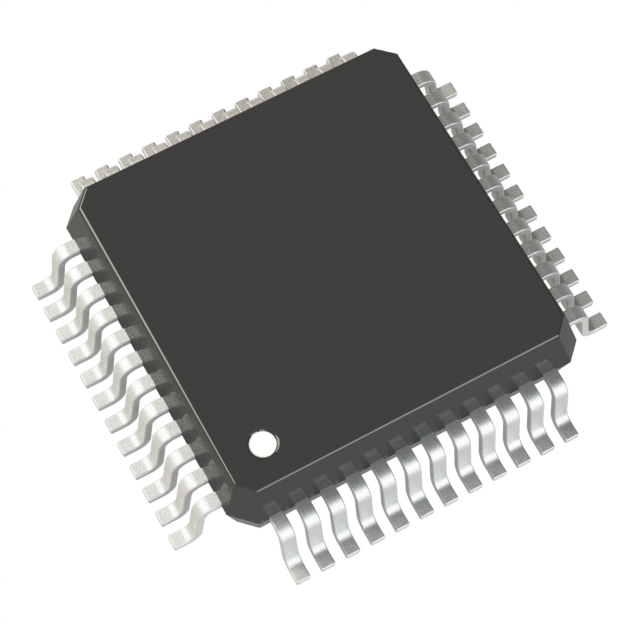

UPD78F0514GA(A)-GAM-AX
IC MCU 8BIT FLASH LQFP
| Part Description |
78K/0 78K0/Kx2 Microcontroller IC 8-Bit 5MHz 48KB (48K x 8) FLASH 48-LFQFP (7x7) |
|---|---|
| Quantity | 96 Available (as of May 5, 2026) |
-GAM-AX.jpg)
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
Specifications
| Part Package | 48-LQFP |
|---|---|
| Device Package | 48-LFQFP (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | 78K/0 |
| Core Size: | 8-Bit |
| Speed: | 5MHz |
| Connectivity: | 3-Wire, I2C, LINbus, UART/USART |
| Peripherals: | LVD, PWM, WDT |
| Number of I/O: | 41 |
| Program Memory Size: | 48KB (48K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 2K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 5.5V |
| Data Converters: | A/D 8x10b SAR |
| Oscillator Type: | External, Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
