AM3351BZCE30

The AM3351BZCE30 is a Sitara AM335x series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A8 32-bit core running at 300 MHz. It is targeted for embedded applications that require a compact, commercially graded MPU with integrated connectivity, display, memory controller support and security features.

With on-chip multimedia acceleration and a range of peripheral interfaces, the device is suited to designs needing integrated display control, network connectivity and standard memory support while meeting RoHS compliance and commercial temperature requirements.

Key Features

• Core & Performance Single ARM® Cortex®-A8 32-bit core clocked at 300 MHz for software-defined embedded processing.
• Memory Controllers Supports LPDDR, DDR2, DDR3 and DDR3L memory interfaces for flexible system memory configurations.
• Peripherals & Connectivity Integrated interfaces include 10/100/1000 Mbps Ethernet (1), USB 2.0 with PHY (1) and I2C for common peripheral connectivity.
• Display & Graphics Built-in display interface controllers for LCD and touchscreen support, with graphics acceleration capability.
• Multimedia Acceleration Multimedia co-processor support including NEON™ SIMD for enhanced media and signal processing.
• Security On-chip cryptography and a random number generator provide hardware-assisted security primitives for embedded applications.

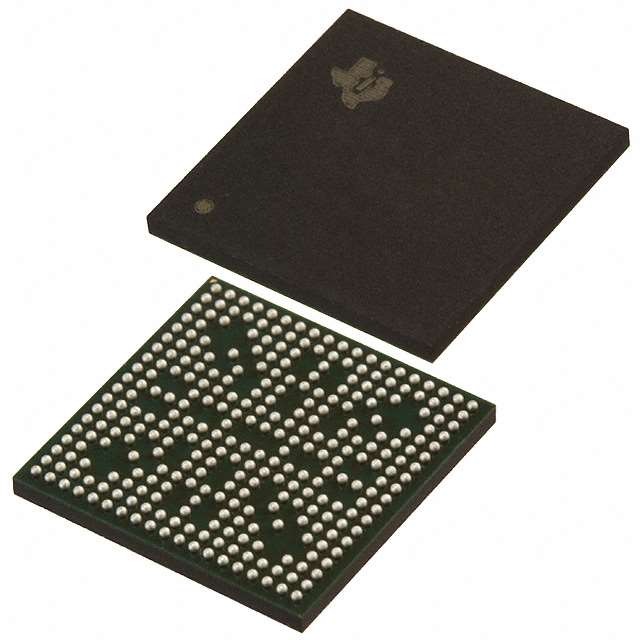

• Package & Mounting Available in a 298-pin NFBGA (13 × 13 mm) supplier package (298-LFBGA case); surface-mount ready.
• Grade & Environmental Commercial grade device with RoHS compliance and operating temperature range of 0 °C to 90 °C.

Typical Applications

• Human-Machine Interfaces (HMI) — Drive LCD and touchscreen displays with integrated display controllers and graphics acceleration for interactive user interfaces.
• Industrial Embedded Controllers — Provide networking and peripheral control using Ethernet, USB and I2C interfaces in commercial embedded systems.
• Networked Gateways — Use the 10/100/1000 Mbps Ethernet interface alongside USB connectivity for compact networked appliance designs.
• Multimedia Devices — Leverage NEON™ SIMD and multimedia co-processor support for basic media processing and acceleration tasks.

Unique Advantages

• Integrated Connectivity: Multiple on-chip interfaces including gigabit Ethernet, USB 2.0 + PHY and I2C reduce external component count and simplify board design.
• Flexible Memory Support: Compatibility with LPDDR, DDR2, DDR3 and DDR3L enables a range of memory configurations to match system cost and performance targets.
• Display-Ready: Native LCD and touchscreen controller support plus graphics acceleration streamlines HMI and display subsystem implementation.
• Hardware Security Primitives: Built-in cryptography and a random number generator provide foundational security features for embedded applications.
• Compact Surface-Mount Package: 298-pin NFBGA (13 × 13 mm) package offers a compact footprint for space-constrained designs.
• Commercial Temperature and Compliance: Commercial-grade operation from 0 °C to 90 °C and RoHS compliance support mainstream product development and regulatory needs.

Why Choose AM3351BZCE30?

The AM3351BZCE30 positions itself as a compact, commercially graded Sitara AM335x microprocessor that integrates essential embedded interfaces, display capability and security features with a single ARM® Cortex®-A8 core at 300 MHz. Its combination of memory interface flexibility, network and USB connectivity, and graphics/display support makes it suitable for designers building commercial embedded systems with integrated user interfaces and network access.

As a Texas Instruments Sitara family member, the device provides a straightforward hardware foundation for developers seeking an integrated MPU solution with defined operating temperature and RoHS compliance. It is appropriate for projects where board space, peripheral integration and commercial-grade operation are primary considerations.

Request a quote or submit a pricing inquiry today to check availability and receive tailored ordering information for the AM3351BZCE30.
