AM3356BZCZ30

The AM3356BZCZ30 is a Sitara AM335x series microprocessor featuring a single ARM® Cortex®-A8 32-bit core running at 300 MHz. It targets embedded applications that require integrated connectivity, multimedia processing, and display capabilities in a commercial-grade package.

With built-in multimedia co‑processing, graphics acceleration, multiple high‑speed interfaces and hardware security features, the AM3356BZCZ30 provides a compact, interface-rich solution for human‑machine interfaces, industrial gateways and other embedded systems.

Key Features

• Core — Single ARM® Cortex®-A8 32‑bit core at 300 MHz providing deterministic processing for embedded workloads.
• Multimedia and Acceleration — Multimedia co‑processors including NEON™ SIMD and graphics acceleration to offload media and compute‑intensive tasks.
• Memory Support — Flexible memory controller support for LPDDR, DDR2, DDR3 and DDR3L memories to match product cost and performance targets.
• Display and HMI — Integrated LCD and touchscreen display interface controllers for direct connection to user interfaces.
• Connectivity — Two 10/100/1000 Mbps Ethernet ports and two USB 2.0 with PHY provide high‑throughput wired networking and peripheral connectivity.
• Additional Interfaces — CAN interface included for vehicle networks or industrial control buses where applicable.
• Security — On‑chip cryptography and a hardware random number generator for secure operation and trusted functions.

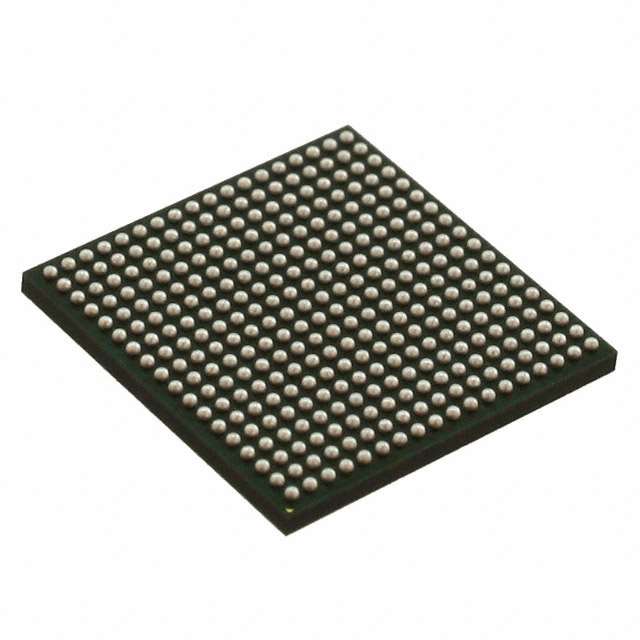

• Package and Mounting — Available in a 324‑NFBGA (15×15) supplier device package; package case listed as 324‑LFBGA. Surface‑mount construction for compact board designs.
• Operating Range and Grade — Commercial grade device with an operating temperature range of 0 °C to 90 °C.

Typical Applications

• Human‑Machine Interfaces (HMIs) — Drive LCD touchscreens and render graphics‑accelerated interfaces for control panels and operator displays.
• Industrial Gateways and Controllers — Use dual Gigabit Ethernet and CAN to bridge networks and manage industrial communications.
• Multimedia Devices — Leverage NEON SIMD and graphics acceleration for audio/video processing and playback tasks.
• Embedded Connectivity Appliances — Host USB peripherals and multiple network interfaces in compact embedded systems.

Unique Advantages

• Integrated Connectivity: Two 10/100/1000 Mbps Ethernet ports and two USB 2.0 + PHY ports reduce external PHY and hub requirements for connected designs.
• Multimedia‑Ready Processing: NEON™ SIMD and dedicated multimedia co‑processors plus graphics acceleration enable smoother media handling without additional ASICs.
• Memory Flexibility: Support for LPDDR, DDR2, DDR3 and DDR3L provides design flexibility across performance and cost tradeoffs.
• Security Hardware: Built‑in cryptography and a random number generator help implement secure boot, encrypted communications and trusted services.
• Compact Surface‑Mount Package: 324‑NFBGA (15×15) supplier package minimizes board area while delivering extensive peripheral integration.
• Commercial Temperature Range: Rated for 0 °C to 90 °C to suit a broad set of commercial embedded environments.

Why Choose AM3356BZCZ30?

The AM3356BZCZ30 combines a 300 MHz ARM® Cortex®‑A8 core with multimedia acceleration, broad memory support and multiple high‑speed interfaces in a compact NFBGA package. It is positioned for commercial embedded designs that require a balance of processing capability, integrated connectivity and on‑chip security.

As a member of the Sitara AM335x series, this device is suited to designers building human‑machine interfaces, industrial networking equipment, multimedia appliances and other space‑constrained embedded systems that benefit from integrated peripherals and display support.

Request a quote or submit an inquiry to get pricing, availability and lead‑time information for the AM3356BZCZ30. Our sales team can provide configuration and ordering details to support your design timeline.
