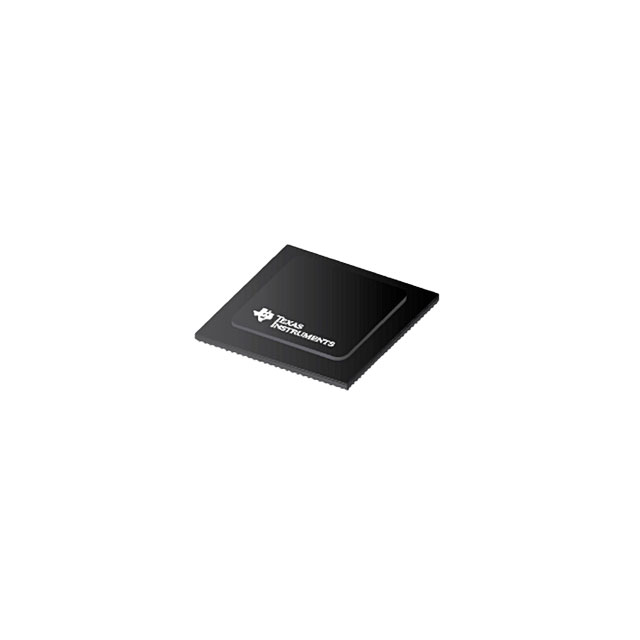

AM6526BACDXA

The AM6526BACDXA is a Sitara™ microprocessor IC from Texas Instruments featuring Arm® Cortex®-A53 application cores and Arm® Cortex®-R5F real-time cores. It combines a 1.1 GHz Cortex‑A53 subsystem with dual Cortex‑R5F cores up to 400 MHz, industrial-grade operating range, and a broad set of integrated peripherals for embedded and industrial designs.

Targeted at embedded and industrial applications, the device delivers a balance of application processing, real-time control, industrial communication, and onboard security and functional-safety capabilities to simplify system design and improve reliability.

Key Features

• Core Subsystem  Dual- or multi-core Arm Cortex‑A53 application processors at up to 1.1 GHz plus dual Arm Cortex‑R5F real-time cores up to 400 MHz for deterministic control.
• Graphics and Display  Integrated PowerVR SGX544‑MP1 3D GPU and display interfaces including LVDS and MIPI‑CSI for HMI and graphics tasks.
• Memory and Storage  Supports DDR3, DDR4 and LPDDR4 memory controllers; on-chip memory includes up to 2 MB L3 RAM with SECDED and multi-core shared memory controllers.
• Industrial Communication  Three gigabit Industrial Communication Subsystems (PRU_ICSSG) with support for 10/100/1000 Ethernet (up to two ports per PRU_ICSSG) and additional deterministic I/O for industrial control.
• Interfaces  Integrated USB (USB 2.0 and USB 3.1), CAN, and multiple high-speed and peripheral interfaces to support connectivity and sensor/subsystem integration.
• Security  Hardware cryptographic acceleration and security features including AES, 3DES, MD5, SHA, PKA and DRBG to support secure boot and data protection.
• Functional Safety  Developed for functional-safety applications with features such as ECC/parity on critical memories, error signaling, BIST, and documented functional-safety support; IEC 61508 certification referenced in documentation.
• Package and Temperature Range  784‑FCBGA (23×23) package, surface-mount, and industrial operating temperature range of −40 °C to 105 °C.
• Standards and Compliance  RoHS compliant.

Typical Applications

• Industrial Automation and Control  Use the integrated PRU_ICSSG subsystems and gigabit Ethernet ports for deterministic industrial networking and motion-control interfaces.
• Human‑Machine Interfaces (HMI)  Leverage the PowerVR GPU and LVDS/MIPI‑CSI display interfaces for graphical user interfaces and camera-aware systems.
• Robotics and Motor Control  Combine Cortex‑A application processing with Cortex‑R5F real‑time cores to handle high-level algorithms and low‑latency motor control tasks.
• Secure Embedded Systems  Built-in cryptographic engines and secure-boot capabilities make the device suitable for applications requiring hardware security primitives and authenticated boot chains.

Unique Advantages

• Heterogeneous Processing: Dual Cortex‑A53 application cores plus Cortex‑R5F real-time cores enable separation of high-level and deterministic control tasks within one device.
• Integrated Industrial Networking: Multiple PRU_ICSSG subsystems with gigabit Ethernet ports simplify implementation of industrial protocols and high-speed deterministic communication.
• Functional‑Safety Support: On-chip ECC, BIST, error signaling, and TÜV‑referenced IEC 61508 documentation help reduce safety development overhead for safety-related designs.
• Security Built In: Hardware cryptographic acceleration and secure-boot support help protect firmware and data without adding external cryptographic co-processors.
• Broad Memory Support: Support for DDR3/DDR4/LPDDR4 and on-chip L3 SRAM with SECDED enables flexible memory architectures and improved data integrity.
• Industrial Temperature and Packaging: 784‑FCBGA package and −40 °C to 105 °C operating range are suited to industrial environments and surface-mount assembly.

Why Choose AM6526BACDXA?

The AM6526BACDXA positions itself as an integrated solution for embedded and industrial systems that require a mix of high-performance application processing, real-time control, secure operation, and functional-safety capabilities. Its combination of Cortex‑A53 and Cortex‑R5F cores, industrial communication subsystems, cryptographic engines, and on-chip memory controls makes it appropriate for designs that demand consolidation of compute and control functions while maintaining reliability.

This device is aimed at system designers building industrial automation, HMI, robotics, and secure embedded platforms who need long-term robustness, industrial operating range, and documented functional-safety and security features from a Texas Instruments Sitara processor family member.

Request a quote or submit an inquiry to purchase the AM6526BACDXA through your preferred procurement channel today.
