AMIC120BZDNA30

The AMIC120BZDNA30 is a single-core ARM® Cortex®-A9 microprocessor operating at 300 MHz from the Texas Instruments AMIC1xx series. It is a 32-bit embedded MPU designed for industrial applications that require a compact, surface-mount processor with integrated interfaces and security primitives.

With on-chip memory controllers for DDR3 and LPDDR2, dual USB 2.0 ports, an LCD display controller and hardware security engines, the device targets embedded systems that need balanced compute, connectivity and operational reliability across an industrial temperature range.

Key Features

• Core — ARM® Cortex®-A9 single core, 32-bit, 300 MHz providing general-purpose embedded processing.
• Memory interfaces — Integrated controllers for DDR3 and LPDDR2 simplify external memory interfacing for system memory and frame buffers.
• Security engines — On-chip AES, SHA, RNG and DES hardware accelerators for cryptographic and secure-key functions.
• Multimedia/DSP support — NEON™ SIMD co-processor support for multimedia and signal-processing workloads.
• Peripherals & I/O — Dual USB 2.0 ports and an LCD display controller plus an AC'97 interface for audio/legacy codec connectivity.

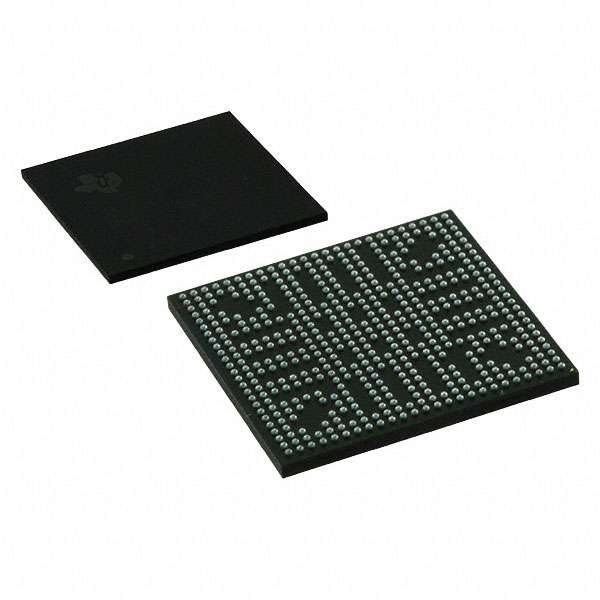

• Package & mounting — 491-NFBGA package (17×17 mm) in a surface-mount form factor (491-LFBGA referenced).
• Industrial grade — Rated operating temperature range of −40 °C to 105 °C for deployment in harsh environments.

Typical Applications

• Industrial Control Panels — Use the Cortex‑A9 core together with the LCD controller and industrial temperature range for human‑machine interfaces and operator panels.
• Embedded Communication Devices — Dual USB 2.0 ports and on‑chip security engines enable secure peripheral connectivity and data transfer in embedded comms equipment.
• Multimedia & Signal Processing — NEON SIMD support provides acceleration for multimedia decoding and DSP-style processing tasks.
• Audio and Legacy Codec Systems — AC'97 interface supports integration with audio codecs and legacy audio peripherals.

Unique Advantages

• Compact, high-density package: 491‑pin NFBGA (17×17 mm) offers significant I/O in a space-efficient surface-mount package.
• Industrial temperature capability: −40 °C to 105 °C rating supports reliable operation in demanding environments.
• Integrated security primitives: AES, SHA, RNG and DES hardware reduce the need for external crypto components and offload software processing.
• Flexible memory support: DDR3 and LPDDR2 controllers accommodate common memory options for performance and power trade-offs.
• Rich peripheral set: Dual USB 2.0, LCD controller and AC'97 reduce BOM and simplify system integration for multimedia and I/O‑centric designs.
• NEON multimedia acceleration: On-chip SIMD support accelerates compute-intensive media and signal-processing routines.

Why Choose AMIC120BZDNA30?

The AMIC120BZDNA30 provides a balanced embedded processing solution combining an ARM® Cortex®-A9 core, multimedia co-processing, flexible memory interfaces and on-chip security engines in a compact 491‑pin package. Its industrial temperature rating and integrated peripherals make it suitable for embedded and industrial designs that demand dependable operation and reduced external component count.

As a member of the Texas Instruments AMIC1xx series, this device offers a known manufacturer platform with integrated features targeted at developers building industrial HMIs, communication equipment, multimedia-enabled embedded products and audio‑centric systems.

Request a quote or submit a product inquiry to obtain pricing and availability for AMIC120BZDNA30.
