AT91SAM9G25-CU

The AT91SAM9G25-CU is a Microchip Technology microprocessor IC based on a single ARM926EJ-S 32-bit core running at 400 MHz. Designed for embedded applications, it integrates a range of on-chip interfaces and memory controllers to support connectivity and system memory needs in industrial environments.

With support for DDR2, SDRAM and SRAM memory controllers, 10/100 Mbps Ethernet, and multiple USB 2.0 ports, the device targets embedded designs that require sustained processing, peripheral integration, and industrial operating temperature capability.

Key Features

• Core  ARM926EJ-S single 32‑bit core at 400 MHz for deterministic embedded processing.
• Memory Controllers  On-chip controllers for DDR2, SDRAM and SRAM to support varied system memory architectures.
• Connectivity  Integrated 10/100 Mbps Ethernet and three USB 2.0 ports to enable wired networking and USB peripheral support.
• System Interfaces  External Bus Interface (EBI/EMI) for flexible peripheral and external memory attachment.

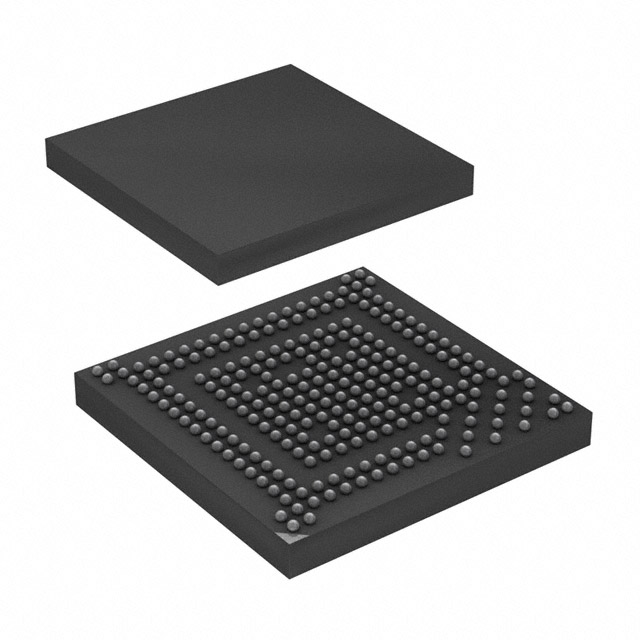

• Package & Mounting  217‑LFBGA (15×15) surface-mount package for compact board-level integration.
• Industrial Grade & Temperature  Industrial grade component rated for operation from −40°C to 85°C.
• Regulatory Status  RoHS compliant.
• Graphics  No graphics acceleration (specified as not included), simplifying use in control- and connectivity-focused designs.

Typical Applications

• Embedded Control Systems  Use the ARM926EJ-S core and memory controllers to run control firmware and manage real‑time I/O in industrial equipment.
• Industrial Networking  10/100 Mbps Ethernet and multiple USB 2.0 ports support networked controllers, gateways, and data acquisition nodes.
• Human‑Machine Interfaces (HMI)  Processor performance and peripheral interfaces enable responsive UI control and peripheral connectivity for operator panels.

Unique Advantages

• Integrated memory support: DDR2, SDRAM and SRAM controllers reduce external memory interface complexity and expand design flexibility.
• Multiple high‑speed I/O options: Built-in Ethernet and three USB 2.0 ports provide ready connectivity for networked and USB‑based peripherals.
• Industrial temperature range: Rated from −40°C to 85°C for deployment in temperature‑challenging environments.
• Compact BGA package: 217‑LFBGA (15×15) allows dense board integration while maintaining necessary I/O pinout.
• Surface mount compatibility: Standard surface‑mount package simplifies automated assembly and scalable production.

Why Choose AT91SAM9G25-CU?

The AT91SAM9G25-CU combines a 400 MHz ARM926EJ-S core with integrated memory controllers, Ethernet and USB connectivity in a compact 217‑LFBGA package, offering a balanced platform for embedded and industrial applications. Its industrial temperature rating and RoHS compliance make it suitable for long‑life deployments where environmental robustness matters.

This part is well suited to designers building embedded controllers, networked devices, and HMI systems that require a deterministic 32‑bit processor plus on‑chip interfaces and memory support to simplify board design and reduce system component count.

Request a quote or submit a purchase inquiry to evaluate the AT91SAM9G25-CU for your next embedded design project.
