R7S921042VCBG#AC0

The R7S921042VCBG#AC0 is an ARM® Cortex®-A9 microprocessor IC from Renesas, featuring a single core running at 528 MHz in a 272-FBGA (17×17) package. It is part of the R7S921042 series and is intended for embedded and industrial applications that require multimedia processing, display interfaces, and secure processing.

With integrated display controllers, multimedia co-processors, USB and CAN interfaces, and hardware security primitives, this device targets designs that need compact integration and industrial temperature operation.

Key Features

• Core — ARM® Cortex®-A9 single core running at 528 MHz, suitable for embedded processing tasks that require deterministic performance.
• Co-processors / DSP — Multimedia co-processors including NEON™ MPE to accelerate media and signal processing workloads.
• Display Interfaces — Built-in controllers for LCD, LVDS, MIPI CSI-2 and video, enabling rich human‑machine interfaces and video input/output integration.
• Connectivity — USB 2.0 (1) and CAN interfaces for peripheral and network connectivity in embedded systems.
• Security Features — Hardware acceleration and primitives including AES, 3DES, GHASH, RSA, SHA1, SHA224 and SHA256 for secure data handling and authentication.
• Graphics Acceleration — Integrated graphics acceleration to offload display rendering and video tasks.

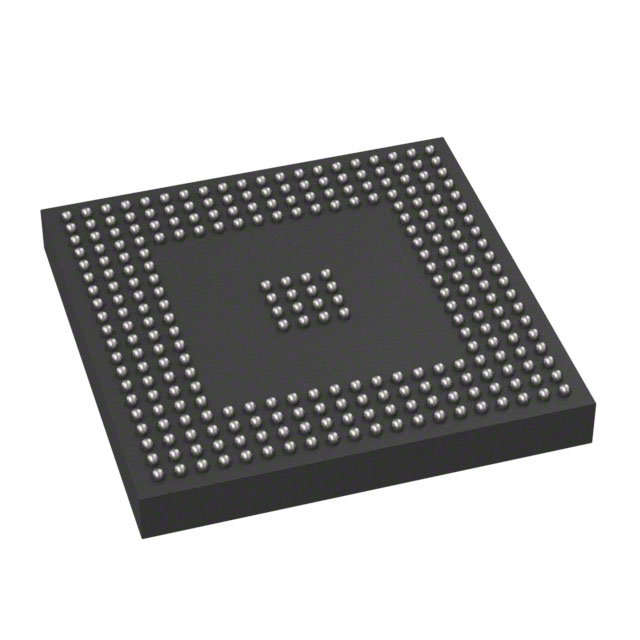

• Package & Mounting — 272‑FBGA package (17×17), surface mount, providing a compact footprint for space‑constrained designs.
• Operating Range — Industrial-grade operating temperature from -40 °C to 85 °C for use in demanding environments.
• Compliance — RoHS compliant for regulatory and environmental requirements.

Typical Applications

• Industrial Control and Automation — Industrial temperature qualification and integrated interfaces make it suitable for control systems and embedded controllers.
• Human‑Machine Interfaces (HMIs) — LCD, LVDS and graphics acceleration support rich display panels and operator interfaces.
• Multimedia and Video Processing — NEON™ MPE and video/display controllers support multimedia processing and video input/output.
• Connectivity Gateways — USB 2.0 and CAN enable device connectivity and networked embedded applications.

Unique Advantages

• Integrated Multimedia Engine: NEON™ MPE and graphics acceleration reduce external processor needs for media and signal tasks.
• Comprehensive Display Support: Native controllers for LCD, LVDS and MIPI CSI-2 simplify integration of advanced displays and cameras.
• Hardware Security Suite: On-chip AES, 3DES, GHASH, RSA and SHA variants provide built-in cryptographic capabilities for secure applications.
• Industrial Temperature Rating: Operation from -40 °C to 85 °C supports deployment in harsh or temperature-sensitive environments.
• Compact Surface-Mount Package: 272‑FBGA (17×17) offers a small footprint for space-constrained embedded designs.
• Standards Compliance: RoHS compliance supports environmental and regulatory requirements in product designs.

Why Choose R7S921042VCBG#AC0?

The R7S921042VCBG#AC0 combines a 528 MHz ARM® Cortex®-A9 core with multimedia co-processing, multiple display controllers, hardware security, and industrial temperature capability. This combination delivers a balance of processing performance, integrated peripherals, and environmental robustness useful for embedded and industrial product lines.

Designed as part of the Renesas R7S921042 series, the device is well suited for engineers building compact, display‑centric, secure embedded systems that require a single‑core Cortex‑A9 MCU-level integration in a surface-mount FBGA package.

Request a quote or submit a parts inquiry to receive pricing and availability information for R7S921042VCBG#AC0.
