R7S921047VCBG#BC0

The R7S921047VCBG#BC0 is an ARM® Cortex®-A9 microprocessor IC in the RZ/A2M family, featuring a single 32-bit core running at 528 MHz in a 272-FBGA (17×17) package. It is targeted at embedded and industrial applications that require integrated multimedia, display, connectivity, and security capabilities.

Designed with industrial qualification and an operating temperature range of -40 °C to 85 °C, this device combines processing performance with on-chip multimedia and cryptographic engines to simplify system integration for embedded designs.

Key Features

• Core — ARM® Cortex®-A9 single 32-bit core running at 528 MHz for embedded processing tasks.
• Multimedia and DSP — Includes multimedia co-processors and NEON™ MPE for accelerated media and signal processing workloads.
• Graphics & Display — Graphics acceleration plus display controller support for LCD, LVDS, MIPI CSI-2 and video interfaces enable rich HMI and video applications.
• Security Engines — Integrated cryptographic functions including AES, 3DES, GHASH, RSA, SHA-1, SHA-224 and SHA-256 provide hardware security building blocks.
• Connectivity — On-chip USB 2.0 (1) and CAN interface options support common peripheral and fieldbus connections.

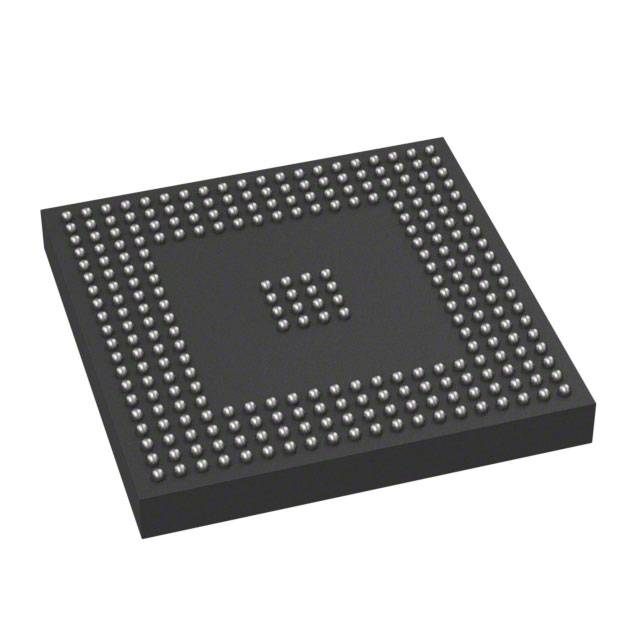

• Package & Mounting — 272-FBGA supplier device package (17×17) optimized for surface-mount assembly.
• Qualification & Temperature — Industrial qualification with an operating temperature range of -40 °C to 85 °C for deployment in industrial environments.
• Compliance — RoHS compliant.

Typical Applications

• Industrial Embedded Systems — Single-core 528 MHz processing with industrial qualification and extended temperature range for control and automation modules.
• Human–Machine Interfaces (HMI) — Integrated graphics acceleration and multiple display interfaces (LCD, LVDS) for user interface and panel applications.
• Imaging and Multimedia — NEON™ MPE and MIPI CSI-2 support for video capture, processing and display pipelines.
• Secure Embedded Gateways — On-chip AES, RSA and SHA engines enable hardware-accelerated security for trusted communications and data protection.

Unique Advantages

• Integrated Multimedia Processing: NEON™ MPE and multimedia co-processors reduce external processor requirements for media and signal tasks.
• Flexible Display Support: Native support for LCD, LVDS and MIPI CSI-2 plus video interfaces simplifies HMI and vision system designs.
• Hardware Security: Comprehensive cryptographic accelerators (AES, 3DES, GHASH, RSA, SHA variants) provide built-in security primitives for embedded applications.
• Industrial-Grade Operation: Industrial qualification and -40 °C to 85 °C operating range enable reliable use in factory and field environments.
• Compact Surface-Mount Package: 272-FBGA (17×17) package supports high-density PCB layouts while maintaining robust connectivity and thermal characteristics.
• Standard Connectivity: Integrated USB 2.0 and CAN interfaces facilitate common peripheral and network connections without additional interface chips.

Why Choose R7S921047VCBG#BC0?

The R7S921047VCBG#BC0 delivers a balanced combination of 528 MHz Cortex-A9 processing, multimedia acceleration, extensive display interfaces, and hardware security features within a compact 272-FBGA package. Its industrial qualification and -40 °C to 85 °C operating range make it suitable for deployed embedded systems that require reliable operation across a wide temperature span.

As part of the R7S921047 series from Renesas, this device is aimed at developers building embedded HMIs, imaging-enabled systems, secure gateways and other industrial applications that benefit from integrated multimedia, connectivity and cryptographic capabilities.

Request a quote or submit an inquiry to purchase R7S921047VCBG#BC0 and evaluate how its integrated features can simplify your embedded design and accelerate time to market.
