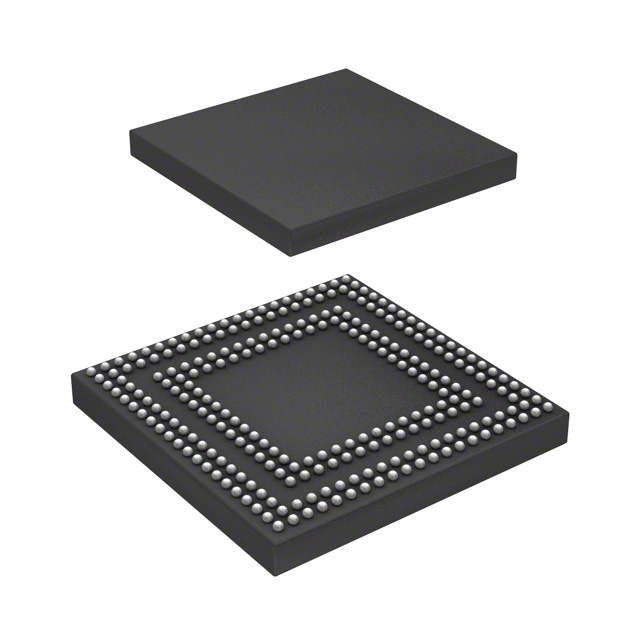

R7S921056VCBG#BC0

The R7S921056VCBG#BC0 is an embedded microprocessor IC based on an ARM® Cortex®-A9 core running at 528 MHz, supplied in a 256-LFBGA (11×11) package. Designed and manufactured by Renesas for industrial applications, this single‑core 32‑bit MPU integrates multimedia acceleration, security engines, and a broad set of system interfaces for display and connectivity tasks.

Its combination of on‑chip graphics acceleration, MIPI CSI2 and display interfaces, security primitives, and industry‑grade operating temperature range makes it suitable for industrial HMI, video/vision processing, and embedded control systems that require performance and integration in a compact surface‑mount package.

Key Features

• Core — ARM® Cortex®-A9 single core, 32‑bit operation at 528 MHz for embedded compute tasks.
• Multimedia & DSP — Integrated multimedia co‑processor with NEON™ MPE for accelerated signal and media processing.
• Graphics & Display — On‑chip graphics acceleration and display interface controllers including LCD, LVDS, MIPI CSI2, and video output support.
• Security — Hardware security primitives including AES, 3DES, GHASH, RSA, SHA1, SHA224, and SHA256 for cryptographic and integrity functions.
• Connectivity — Integrated USB 2.0 (1) and CAN interfaces for system and peripheral communication.
• Package & Mounting — 256‑LFBGA (11×11) surface‑mount package for compact board integration.
• Qualification & Temperature — Industrial qualification with an operating temperature range of −40 °C to 85 °C for reliable use in industrial environments.
• Compliance — RoHS compliant.

Typical Applications

• Industrial HMIs: Drives high‑resolution displays and user interfaces using integrated graphics acceleration and LCD/LVDS display controllers.
• Video/Imaging Systems: Supports camera input and video processing with MIPI CSI2 and on‑chip multimedia acceleration.
• Embedded Control & Automation: Provides compute, security, and CAN connectivity for industrial controllers and gateway devices.
• Connectivity Modules: Integrates USB 2.0 and CAN to enable device communication and peripheral expansion in compact embedded systems.

Unique Advantages

• Balanced performance and efficiency: 528 MHz ARM® Cortex®-A9 core delivers responsive embedded processing while remaining suited to constrained board spaces.
• Rich multimedia capabilities: NEON™ MPE and graphics acceleration simplify implementation of video and imaging functions without extensive external IP.
• Comprehensive security: Built‑in cryptographic engines (AES, RSA, SHA variants, GHASH, 3DES) enable on‑chip secure processing and data protection.
• System integration: Multiple display controllers plus USB and CAN interfaces reduce external component count and streamline BOM.
• Industrial robustness: Industrial qualification and −40 °C to 85 °C operating range support deployment in demanding environments.

Why Choose R7S921056VCBG#BC0?

The R7S921056VCBG#BC0 positions itself as an integrated, industrial‑qualified MPU that balances processing capability, multimedia support, and security in a compact 256‑LFBGA package. Its feature set is tailored for embedded designers who need display, imaging, and connectivity functionality without expanding PCB footprint or complexity.

Ideal for engineers developing industrial HMIs, video and imaging appliances, and connected embedded controllers, this Renesas MPU delivers long‑term value through a focused combination of on‑chip acceleration, hardware security, and industry temperature ratings.

Request a quote or submit a pricing inquiry to obtain availability and volume pricing for R7S921056VCBG#BC0. Our team will provide the next steps to support your design and procurement needs.
