R9A07G043F01GBG#BC0

The R9A07G043F01GBG#BC0 is a Renesas RZ/G series microprocessor featuring an AndesCore™ AX45MP at 1 GHz. It is a single-core, 16-bit embedded MPU designed for industrial embedded applications that require integrated memory interfaces, networking and hardware security.

With support for DDR3L and DDR4 memory, dual Gigabit Ethernet ports, USB 2.0 connectivity and a range of cryptographic accelerators, this MPU targets industrial systems where performance, connectivity and security are key design drivers.

Key Features

• Core  AndesCore™ AX45MP single core operating at 1 GHz, providing deterministic processing for embedded workloads.
• Memory  Integrated controllers for DDR3L and DDR4 memory to support system memory requirements and flexible memory choices.
• Connectivity  Dual Gigabit Ethernet ports and two USB 2.0 interfaces enable high-throughput wired networking and peripheral connectivity.
• Security  On-chip hardware security features including AES, ECC, GHASH, RSA, SHA-1, SHA-224, SHA-256 and a TRNG to support secure communications and cryptographic operations.
• Display and Fieldbus  Built-in LCD display controller and CANbus interface for human-machine interfaces and industrial field connectivity.

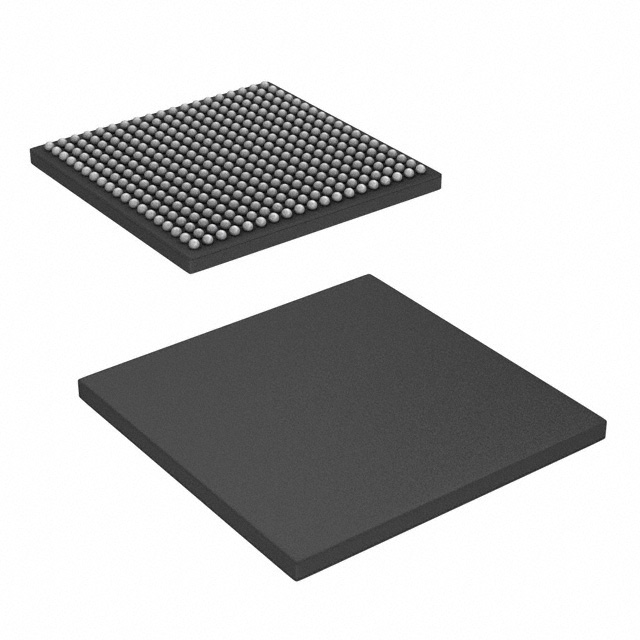

• Package & Mounting  361-LFBGA package, supplied as 361-BGA (13×13), optimized for surface-mount PCB designs.
• Qualification & Temperature  Industrial qualification with an operating temperature range of -40 °C to 85 °C for deployment in industrial environments.

Typical Applications

• Industrial Control Systems  Use the CANbus interface and industrial qualification to implement control and monitoring nodes in factory automation and process control.
• Networked Embedded Appliances  Dual GbE ports and hardware cryptography enable secure network gateway and appliance designs.
• Human-Machine Interfaces (HMI)  Integrated LCD controller and USB connectivity support display-driven operator panels and touchscreen interfaces.
• Edge and IoT Devices  On-chip security accelerators and TRNG help protect data and device identity for industrial edge applications.

Unique Advantages

• Integrated Security Hardware:  AES, ECC, GHASH, RSA, multiple SHA variants and TRNG accelerate cryptographic tasks and simplify secure system design.
• Robust Industrial Range:  Qualified for industrial use with an operating range from -40 °C to 85 °C for reliable field operation.
• Flexible Memory Support:  DDR3L and DDR4 memory controller support provides design flexibility for different performance and cost targets.
• High Connectivity Density:  Dual GbE, USB 2.0 and CANbus deliver multiple wired interface options for networked and fieldbus applications.
• Compact BGA Package:  361-BGA (13×13) surface-mount package enables compact board layouts while accommodating the MPU’s integration.
• Single-Core Determinism:  A dedicated 1 GHz AndesCore™ AX45MP core offers predictable performance for embedded control tasks.

Why Choose R9A07G043F01GBG#BC0?

The R9A07G043F01GBG#BC0 positions itself as a compact, industrial-grade MPU that combines a 1 GHz AndesCore™ processor with extensive connectivity and hardware security. Its memory flexibility, dual GbE ports and industrial temperature range make it suitable for embedded designs that require secure networking, display support and reliable field operation.

Designed and supported by Renesas as part of the R9A07G043 series, this device delivers a balance of integration and deterministic processing for engineers building industrial control, networked appliances, HMIs and edge systems where long-term reliability and on-chip security are priorities.

Request a quote or submit an inquiry today to evaluate R9A07G043F01GBG#BC0 for your next embedded project.
