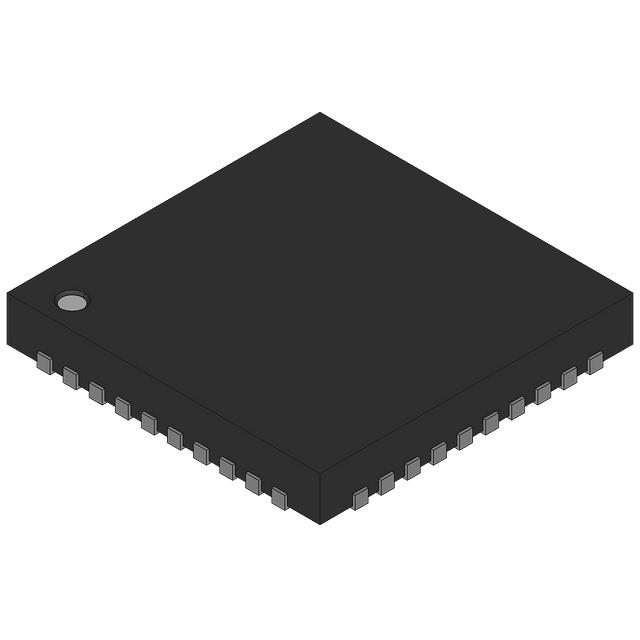

TPS62363YZHR

The TPS62363YZHR is a high-frequency synchronous step-down (buck) DC-DC converter built to power the core rail of a processor or DSP. It takes a 2.5V to 5.5V input, covering common single-cell battery chemistries, and delivers a programmable 0.5V to 1.77V output in 10mV steps through an I2C-compatible interface, with up to 3A of peak load current. Switching at a typical 2.5 MHz and housed in a 16-bump 2 x 2mm NanoFree package, it targets the tight board area and dynamic-voltage needs of smartphones, tablets, and handheld computers. It is a power-management IC rather than a processor, supplying the rail a processor runs on.

Key Features

• 3A processor core supply - up to 3A peak output current for low-voltage DSP and processor cores, including latest submicron processes.
• I2C voltage scaling - a High-Speed-compatible I2C interface sets the output from 0.5V to 1.77V in 10mV steps for dynamic voltage scaling.
• Fast operating-point transitions - dedicated hardware input pins switch quickly between performance and retention operating points.
• DCS-Control architecture - combined with differential load sensing, it holds precise static and transient output regulation.
• Wide input range - 2.5V to 5.5V operation with a power-save mode that lifts efficiency at light loads during processor retention.
• Protection suite - soft start, programmable slew rate, over-temperature protection, and input undervoltage lockout for robust operation.

Typical Applications

• Dynamic-voltage processors and DSPs - supplying scalable core rails for SmartReflex-compliant and similar power schemes.
• Mobile and handheld devices - cell phones, smartphones, tablets, netbooks, and clamshells where board area is scarce.
• Memory and logic rails - compact, accurate point-of-load supply for low-voltage digital loads.

Unique Advantages

• Tiny solution footprint - the 2 x 2mm package and low external component count fit a total solution under 25 square millimeters.
• Remote sense accuracy - differential sensing at the load corrects for drop across the PCB, keeping the core voltage tight where it matters.
• Retention-mode efficiency - the efficiency peak extends toward low output current, saving power while the processor idles in retention.

Why Choose TPS62363YZHR?

The TPS62363YZHR is the right regulator when a design needs an accurate, I2C-programmable core supply for a processor or DSP in minimal space. Its 3A capability, 0.5V to 1.77V scaling range, DCS-Control regulation, remote sensing, and full protection set make it a dependable power stage for mobile and embedded systems that scale voltage with workload. Fast hardware-pin transitions between performance and retention points let it track a processor's power states in real time, while the 2.5 MHz switching frequency keeps the external inductor and capacitors small.

Contact us for pricing, availability, and lead time on the TPS62363YZHR, and tell us your core-rail voltage and current so we can confirm the right TPS6236x variant.
