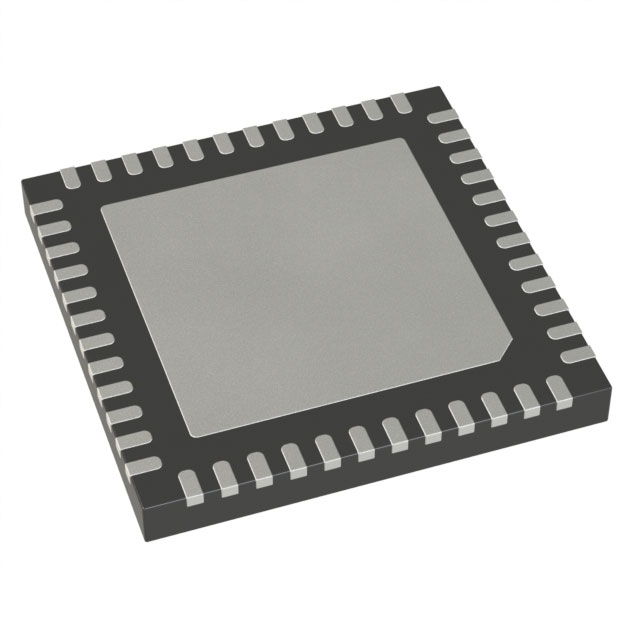

ADF7020BCPZ-RL
IC RF TXRX ISM<1GHZ 48VFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 431MHz ~ 478MHz, 862MHz ~ 956MHz 48-VFQFN Exposed Pad, CSP |
|---|---|
| Quantity | 353 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 48-VFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 48-LFCSP-VQ (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | ASK, FSK, GFSK, GMSK, MSK, OOK, O-QPSK |
| Frequency: | 431MHz ~ 478MHz, 862MHz ~ 956MHz |
| Data Rate (Max): | 200kbps |
| Power – Output: | 13dBm (Max) |
| Sensitivity: | -119.2dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.3V ~ 3.6V |
| Current – Receiving: | 19mA ~ 21mA |
| Current – Transmitting: | 14.8mA ~ 28.5mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
