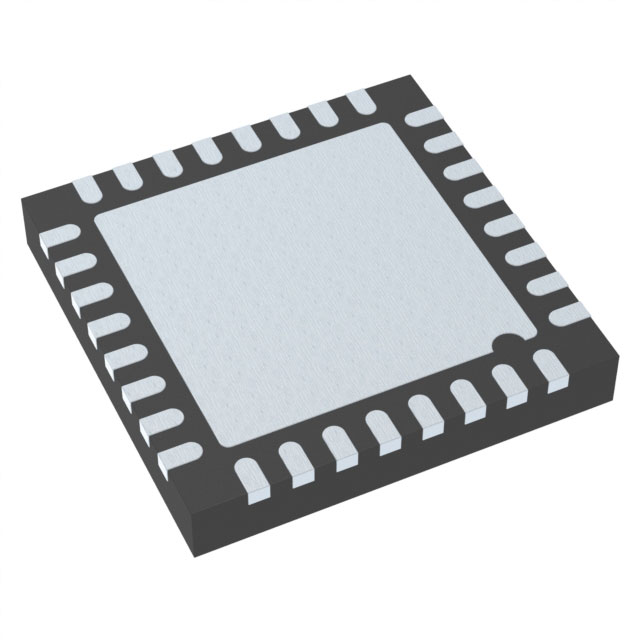

ADF7023-JBCPZ
IC RF TXRX+MCU ISM<1GHZ 32WFQFN
| Part Description |
IC RF TxRx + MCU General ISM < 1GHz 902MHz ~ 958MHz 32-WFQFN Exposed Pad, CSP |
|---|---|
| Quantity | 15 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 32-WFQFN Exposed Pad, CSP |
|---|---|
| Device Package | 32-LFCSP (5×5) |
| Mounting Method | Surface Mount |
| Voltage | 2.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Type: | TxRx + MCU |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | 2FSK, GFSK, GMSK, MSK |
| Frequency: | 902MHz ~ 958MHz |
| Data Rate (Max): | 300kbps |
| Power – Output: | 13.5dBm |
| Sensitivity: | -116dBm |
| Memory Size: | 4kB ROM, 2.5kB RAM |
| Serial Interfaces: | SPI |
| GPIO: | 6 |
| Voltage – Supply: | 2.2V ~ 3.6V |
| Current – Receiving: | 12.8mA |
| Current – Transmitting: | 9.3mA ~ 32.1mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A992C |
| HTS Code | 8542.39.0001 |
