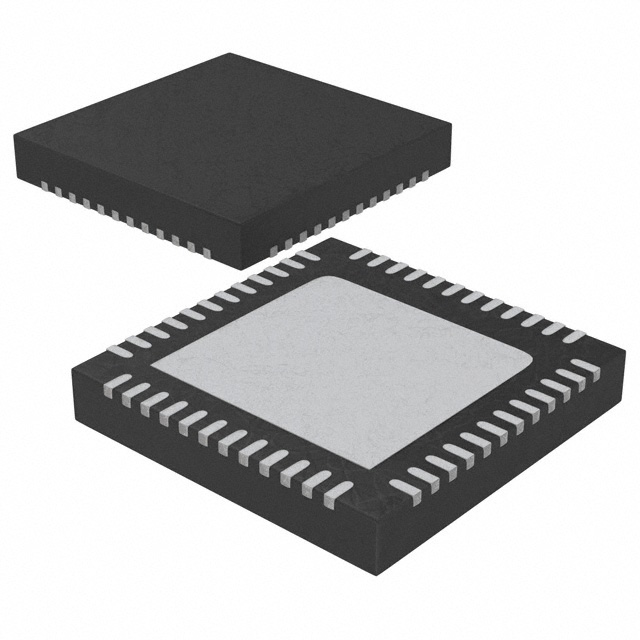

ATA5812C-PLQW
IC RF TXRX ISM<1GHZ 48VFQFN
| Part Description |
IC RF TxRx Only General ISM < 1GHz 315MHz 48-VFQFN Exposed Pad |
|---|---|
| Quantity | 307 Available (as of May 5, 2026) |
| Product Category | RF Transceiver ICs |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 48-VFQFN Exposed Pad |
|---|---|
| Device Package | 48-VQFN (7×7) |
| Mounting Method | Surface Mount |
| Voltage | 2.4V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C |
| Type: | TxRx Only |
| RF Family/Standard: | General ISM < 1GHz |
| Modulation: | ASK, FSK |
| Frequency: | 315MHz |
| Data Rate (Max): | 20kBaud |
| Power – Output: | 10dBm |
| Sensitivity: | -116.5dBm |
| Serial Interfaces: | SPI |
| Voltage – Supply: | 2.4V ~ 3.6V |
| Current – Receiving: | 10.3mA ~ 10.5mA |
| Current – Transmitting: | 8.5mA ~ 17.8mA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
